Technical Data

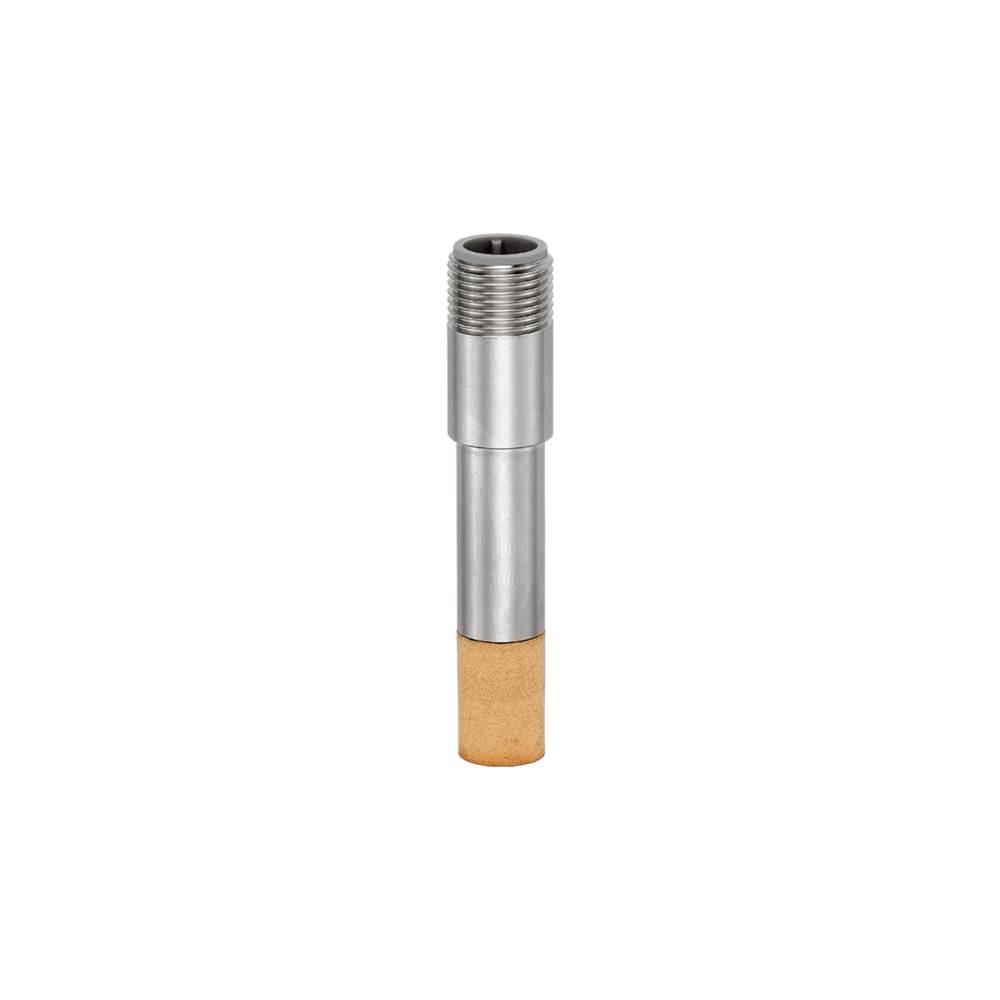

Version	On site multi sensor for humidity, temperature and pressure
Measuring range
->Humidity	0…100 % RH
->Temperature	-40…85 °C
->Pressure	300…1200 mbar abs.
Measuring medium	ambient air (non-aggressive gases)
Sensor length	75 mm
Sensor diameter	10 mm
Process connection	without
Nominal pressure	n.a. (atmospheric pressure)
Ambient temperature	-40…85 °C
Storage temperature	-40…85 °C
Degree of protection EN 60529	IP40
Electrical data
Measuring element	1 x digital sensor for humidity and temperature
	1 x digital sensor for absolute pressure
Measuring insert	Not interchangeable / Filter cap changeable
Accuracy	Digital Multi sensor for humidity, temperature and pressure
->Humidity	±2.5 % RH @ 10...90 % RH, 20...60 °C (typ.)
->Temperature	±0.3 K
->Pressure	±1.0 mbar @ 950...1050 mbar (typ.)
Electrical connection	4-pin plug connector M12 x 1
