Technical Data
Version	Wall mounting
Dimensions (Housing with mounting plate)	170 mm x 150 mm x 35 mm (W x H x D)

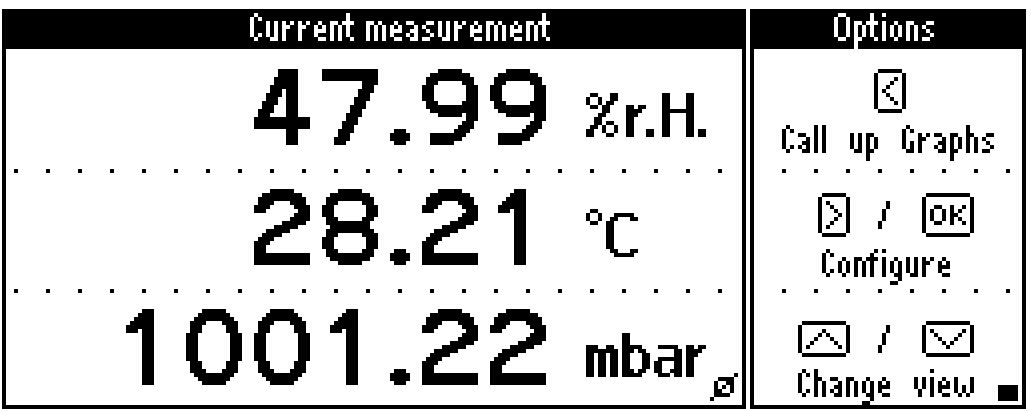

Display
Type	Dot matrix graphic display
Backlight	Yes (adjustable)
Size (W x H)	83 mm x 33 mm
Resolution	256 x 100 Pixel
Indication accuracy	0.01
Operationg elements	5 capacitive keys
Measuring rate	1 s
Ambient temperature	-20…70 °C
Storage temperature	-20…70 °C
Degree of protection EN 60529	IP65, plug & cable connected
Approvlas	EU RO Mutual Recognition Type Approval Certificate (Covers: ABS, BV, CCS, CRS, DNV, IRS, KR, LR, ClassNK, PRS, RINA, RS))
Electrical data
Power supply	24 VDC (16…32 V)
Current consumption	<100 mA
Input

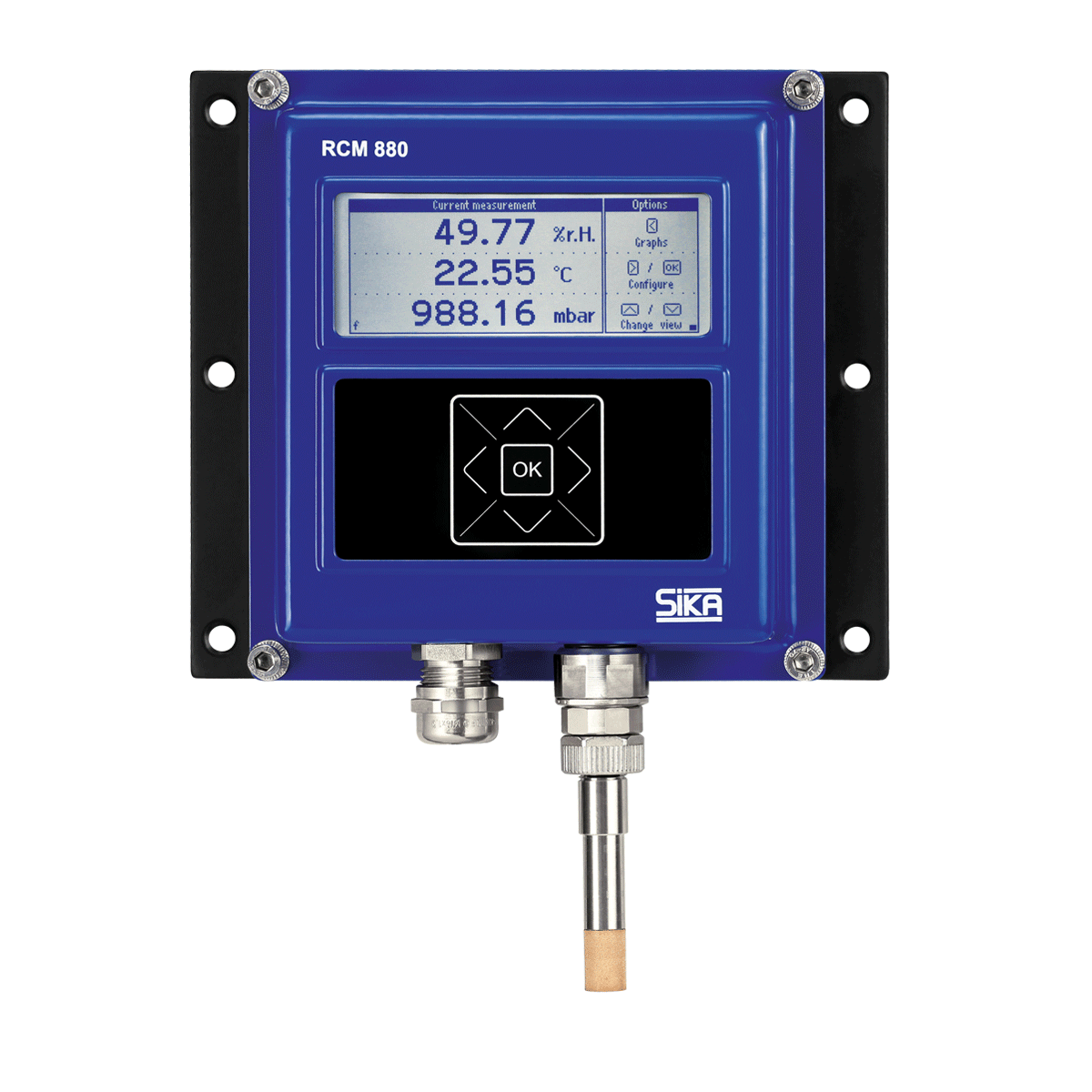

Measuring element	Digital Multi sensor for humidity, temperature and pressure
Accuracy	See technical data - Multi sensor
Electrical connection	4-pin plug connector M12 x 1

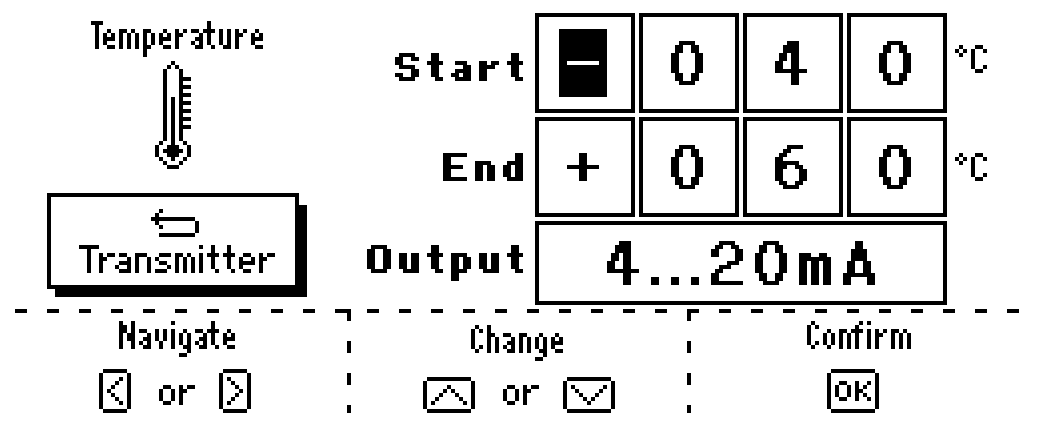

Output
Number of channels	3
Signals	0...20 mA or 4…20 mA or 0…10 V or 0…5 V
Measuring range
->Humidity	0…100 % RH
->Temperature	-40…85 °C
->Pressure	300…1200 mbar abs.
Accuracy
Signal error	4…20mA	0…20mA	0…10V	0…5V
->Error Analog/Digital Converter	0mA	0mA	0V	0V
->General error	<3.5mA	0mA	0V	0V
->Underrange	3.8mA	0mA	0V	0V
->Overrange	20.5mA	20.5mA	10V	5V
->Sensor error	>21mA	>21mA	0V	0V
Electrical connection	Cable gland M16 x 1.5 (cable outer diameter 5…10 mm)
	Spring clamp terminal:
	cable cross section 0.2...1.5mm² (without wire ferrule)
	cable cross section 0.25...1mm² (with wire ferrule)
Load
->Current output	Max. 500 Ω
->Voltage output	Min. 1.5 kΩ
