Technical Data
Version	90° angle
Dimensions (Housing)	150 x 36 mm
Measuring Range	-30…200 °C
Medium / Application	Liquid and gaseous media

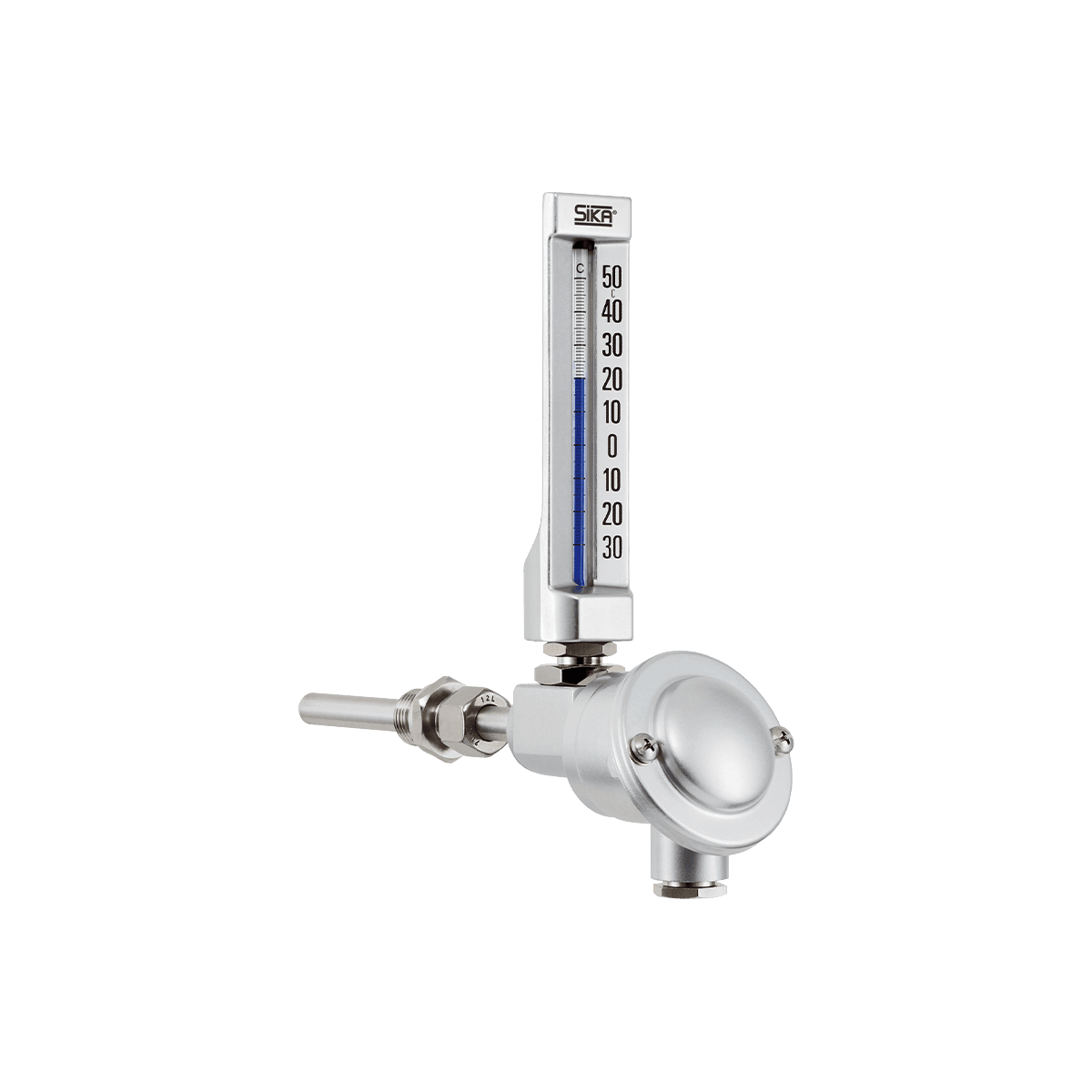

Immersion Tube Length (K610_Clamp connection)	135 mm or 160 mm

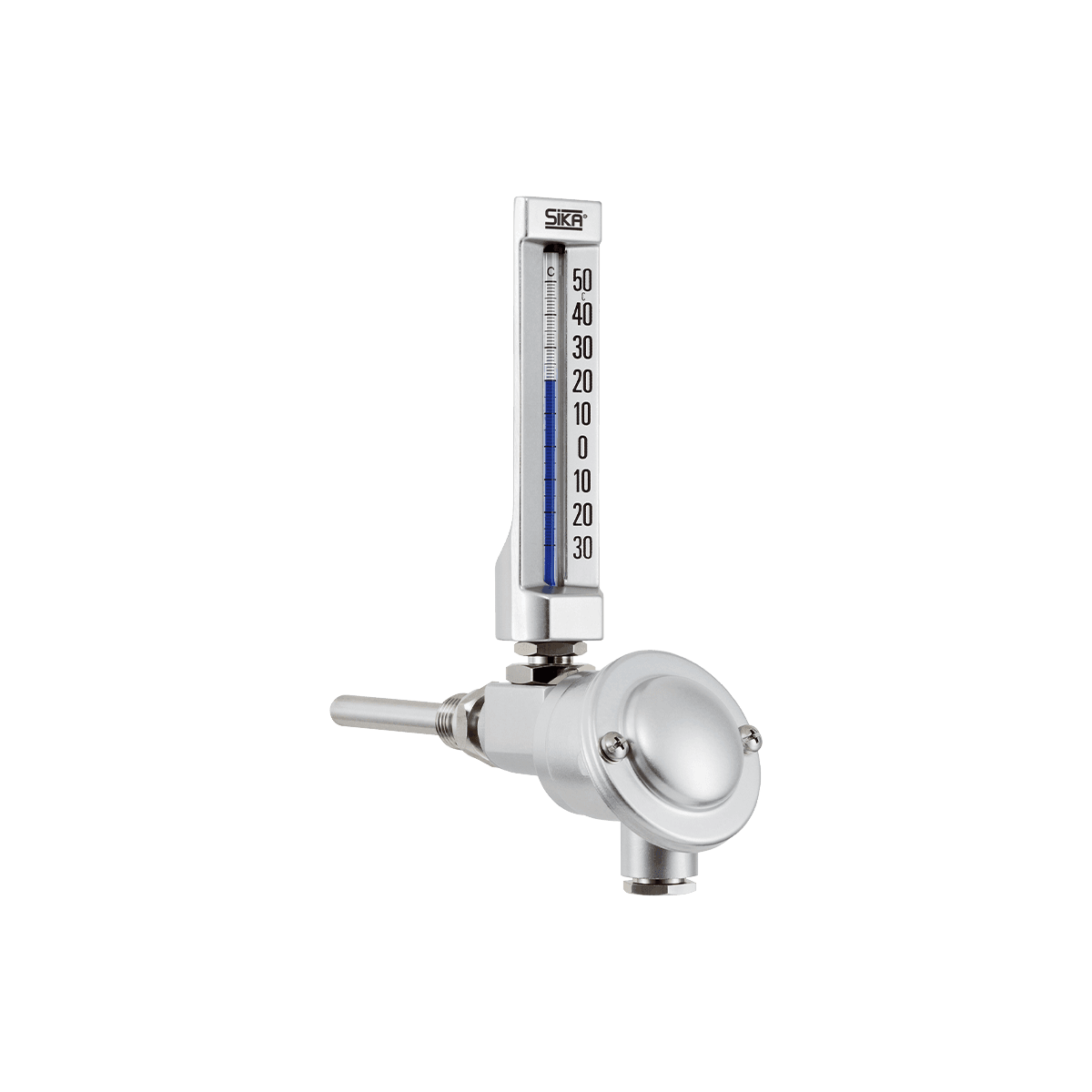

Immersion Tube Length (K620_Fixed thread connection)	63 mm, 100 mm or 160 mm
Immersion Tube Diameter	12 mm
Process Connection (K610_Clamp connection)	G½
Process Connection (K620_Fixed thread connection)	G½, G¾ or M20 x 1.5
Nominal Pressure (Brass)	PN 16
Nominal Pressure (Stainless Steel)	PN 40
Thermometer Capillary	Prismatic, Ø approx. 6 mm
Thermometer Filling (Red)	Blue, -30…200 °C
Thermometer Filling (Blue)	Blue, -30…201 °C
Medium temperature	Depending on measuring range
Ambient temperature	-20…60 °C (only for indoor use)
Storage temperature	-25…60 °C
Degree of Protection	IP65 (EN 60529)
Materials (Housing)	Warm-pressed aluminium part, gold anodized
Materials (Immersion Tube)	Brass or Stainless Steel 1.4571
Materials (Process Connection)	Brass or Stainless Steel 1.4571
Electrical data
Measuring element	1 x Pt100 / 3-wire
	2 x Pt100 / 3-wire
	1 x Pt1000 / 2-wire
	1 x NiCr-Ni (type K)
	2 x NiCr-Ni (type K)
Accuracy	Class B
	Class 1
Electrical connection	Head type B (DIN 43729)
Options
K 610 / K 620	Analogue output 4…20 mA for 1 x Pt100
