Technical Data
Version	Straight
Dimensions housing	110 x 30 mm
Measuring range	-30…200 °C
Medium / Application	Liquid and gaseous media
Immersion tube length
->Clamp connection	135 mm or 160 mm
->Fixed thread connection	63 mm, 100 mm or 160 mm
Immersion tube diameter	12 x 1 mm
Nominal pressure
->Immersion tube brass	PN16
->Immersion tube stainless steel	PN40
Thermometer capillary	Prismatic, Ø approx. 6 mm
Thermometer filling (Blue)	-30...200 °C
Medium temperature	Depending on measuring range
Ambient temperature	-20…60 °C (only for indoor use)
Storage temperature	-25…60 °C
Degree of protection EN 60529	IP65
Electrical data
Measuring element	1 x Pt100 / 3-wire
	1 x Pt1000 / 2-wire
Accuracy	Class B
Electrical connection	Head type J
Options

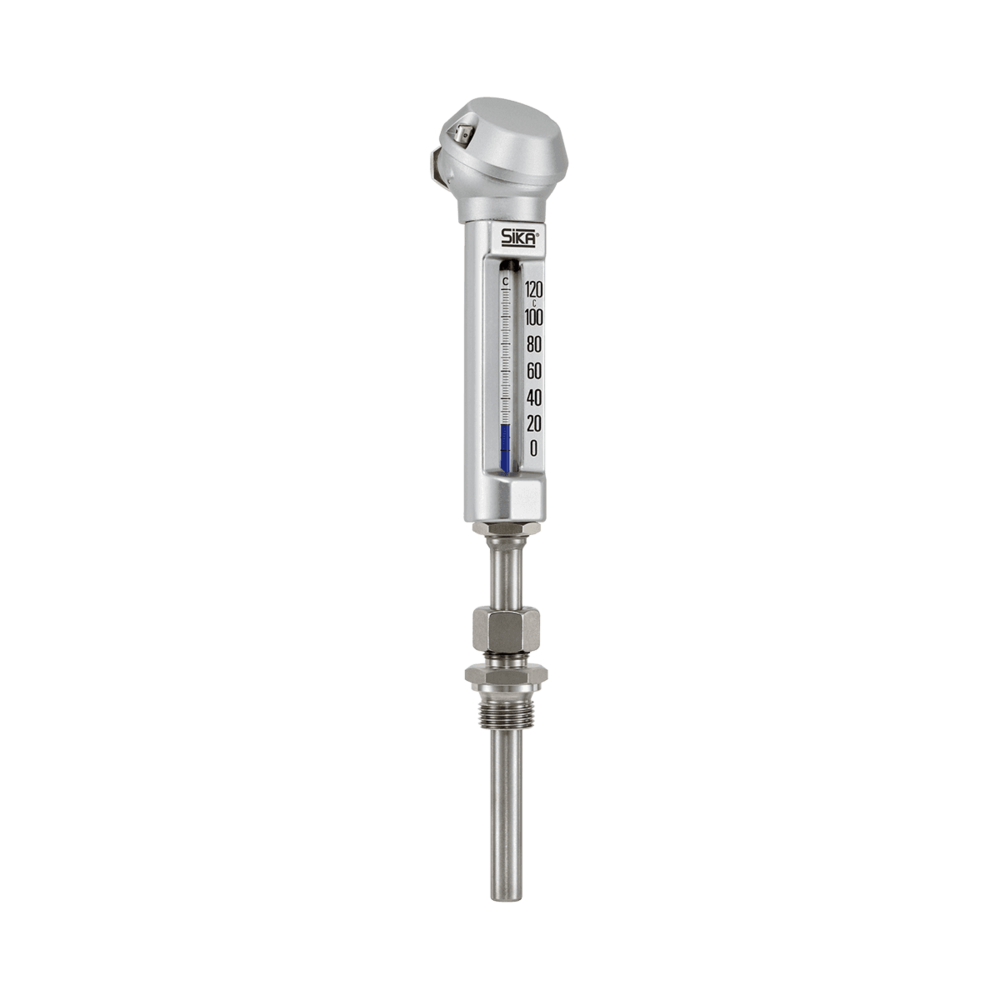

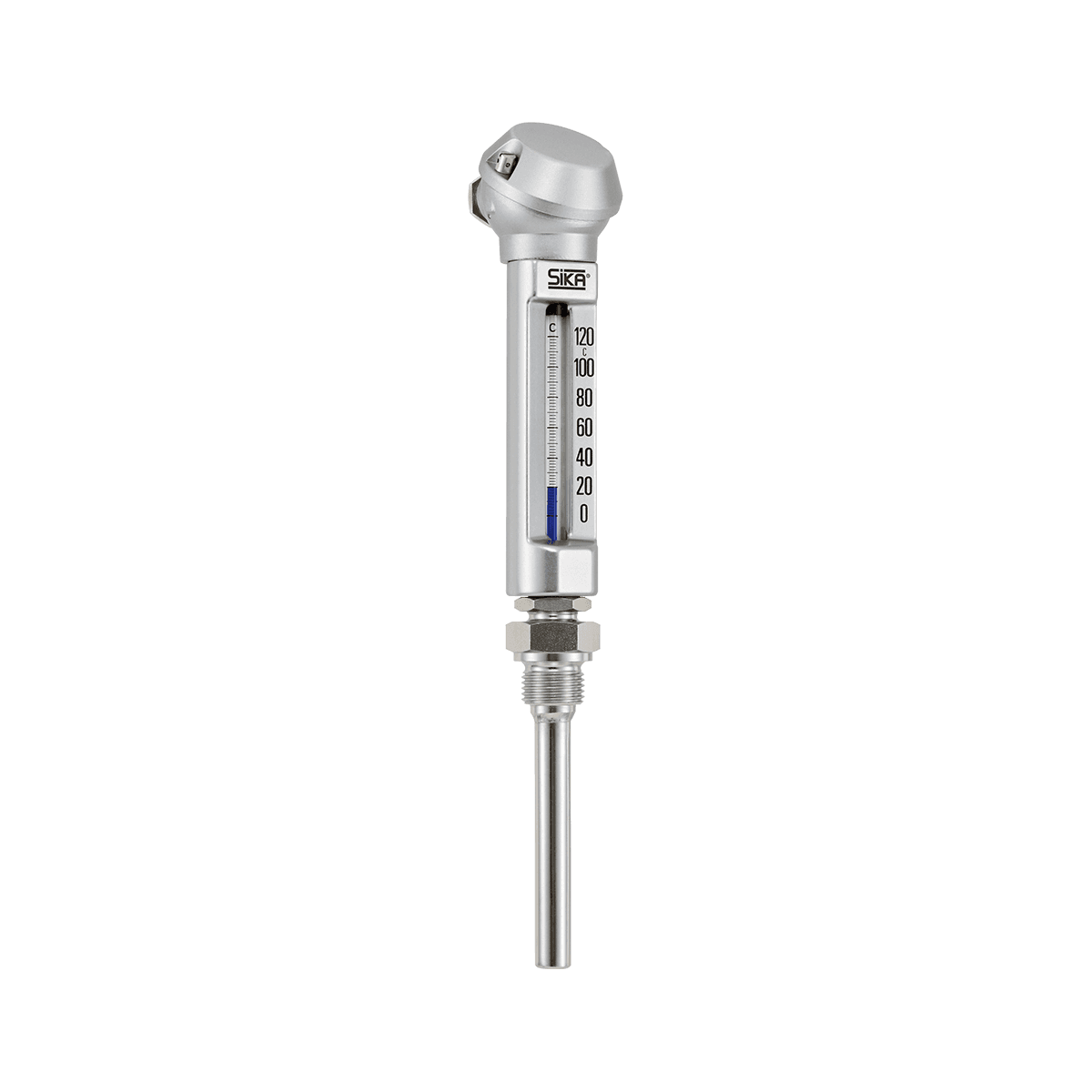

K 110 / K 120	Analogue output 4…20 mA for 1 x Pt100
