Technical Data

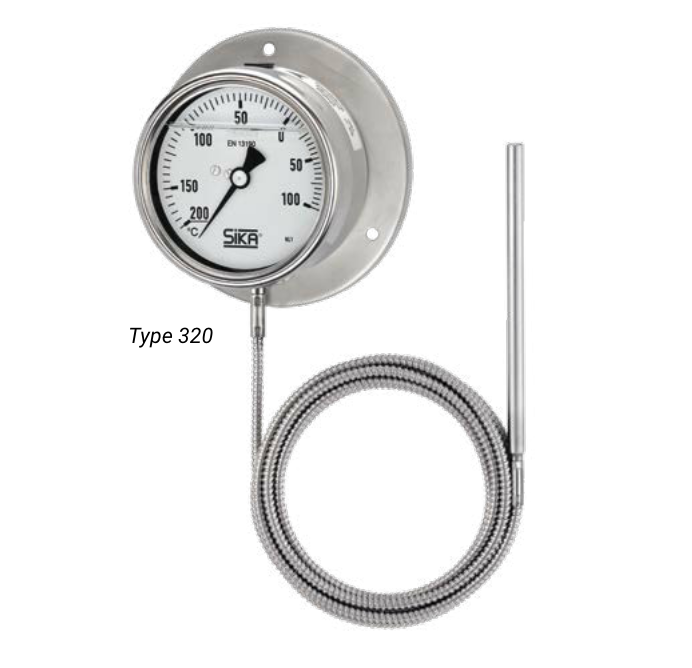

Type	310 WH	320 TA	330 TE	340 KL
Version	With wall bracket	Rear mounting flange	Front mounting flange	With U bracket
Immersion tube connection	Bottom		Central back
Nominal size	Ø 80 or 100 mm
Display ranges according to EN 13190	-200...100 °C
	-150...100 °C
	-50...100 °C
	-100...50 °C
Accuracy according to EN 13190	Class 1
Medium / Application area	Liquid and gaseous media
Immersion tube diameter	Ø 12 mm
Immersion tube length	Between 100...400 mm
Capillary line	with Stainless steel-spiral protection, 1...15 m Length
Process connection	Connection types: A, AK
Nominal pressure	Max. 25 bar
Measuring system	Nitrogen filled
Degree of protection according to EN 60529	IP65
Medium temperature	See selected display range
Ambient temperature	-20…60 °C (only indoors)
Storage temperature	-40…60 °C
Nominal service temperature (EN 13190)	23 °C ±2 °C
