Technical Data

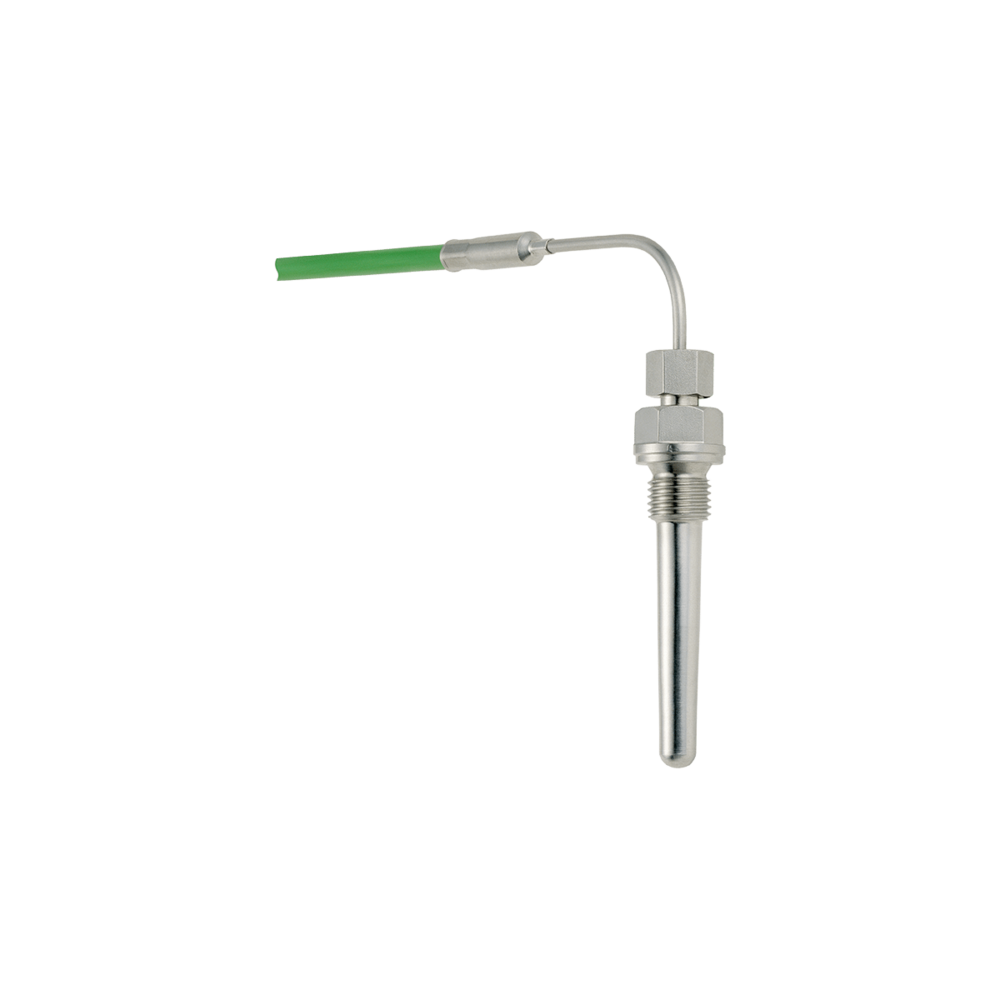

Type	Temperature sensor with connection cable
Measuring range	0…850 °C
Measuring medium	Exhaust gases marine diesel engines
Immersion tube length	65 or 95 mm
Immersion tube diameter	Conical 10 to 8 mm
Process connection	M14 x 1,5, G¼
Nominal pressure	PN 25
Medium temperature	0...850 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Electrical data
Measuring element	1 x NiCr-Ni (Type K)
Measuring insert	Interchangeable
Accuracy	Class 1 / ±1.5 °C or 0.004 x T
Electrical connection	FEP cable, wire braided
