Technical Data
Type	174B	175B
standard	DIN 16181 B, B1 and DIN 16182 S, S1

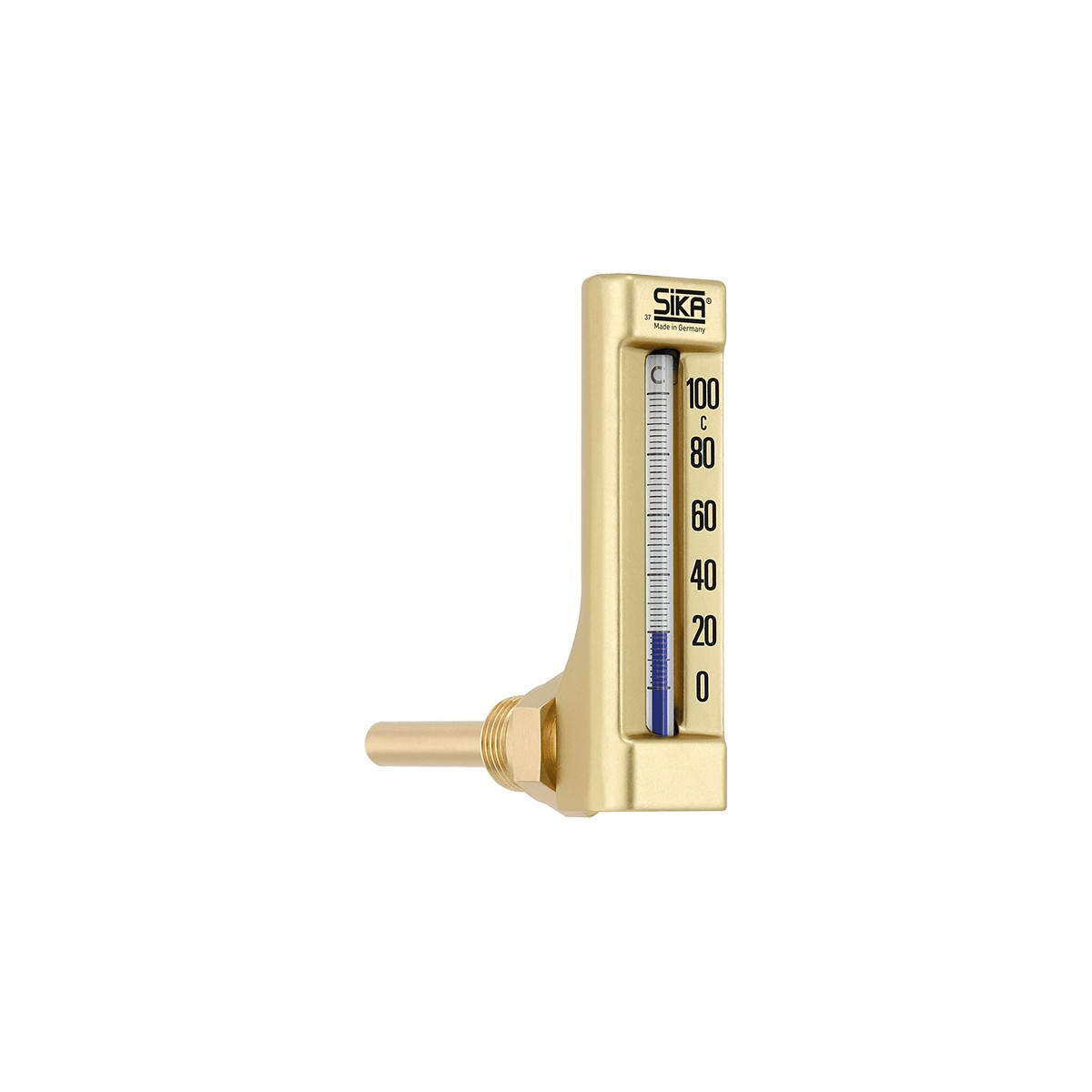

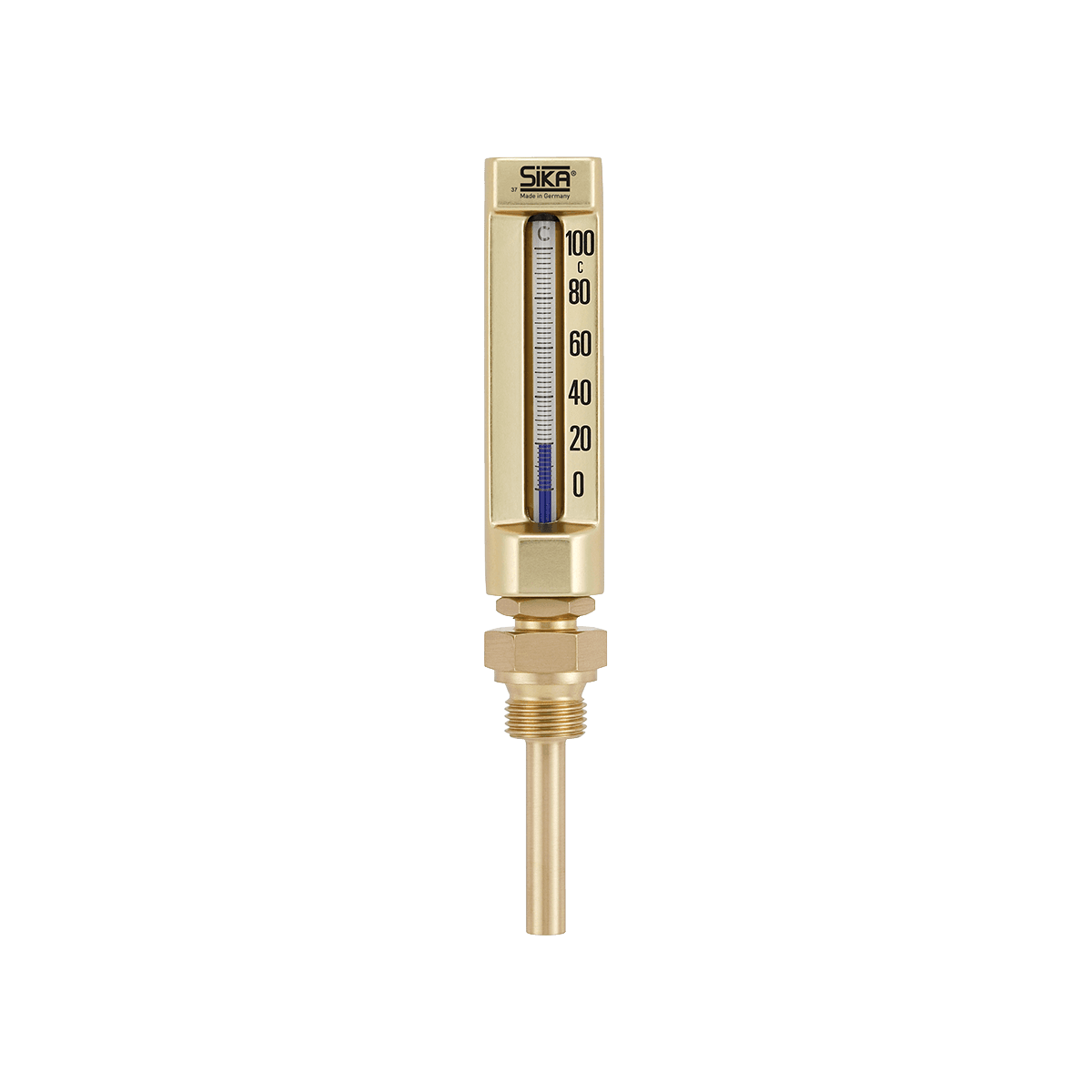

Version	Straight	Angle 90°
Dimensions Housing	110 x 30 mm
Measuring range according to DIN	Between -30…200 °C
Error limits according to DIN 16195	2 °C
Medium / Application	Liquid and gaseous media
Immersion tube length	Between 30...250 mm
Immersion tube diameter	Ø 10 mm
Process connection	Fixed male thread G⅜, G½, M20 x 1.5
Pressure rating
->Immersion tube brass, brazed	PN 16
->Immersion tube steel or stainless steel, welded	PN 35
->Immersion tube special brass or CuNi30Fe	PN 16
Medium temperature	See selected measurement range
Ambient temperature	-20…60 °C (only indoors)
Storage temperature	-40…100 °C
Approvals	DNV
Material
Not in contact with media
Housing	Warm pressed aluminium part, gold anodized
Thermometer capillary	Prismatic capillary tube of solid glass, bar-shaped, diameter approx. Ø 6 mm, scale permanently burnt in
Thermometer filling (Blue)	Petroleum
In contact with media
Process connection	see immersion tube material
Immersion tube material (standard)	Brass, brazed
