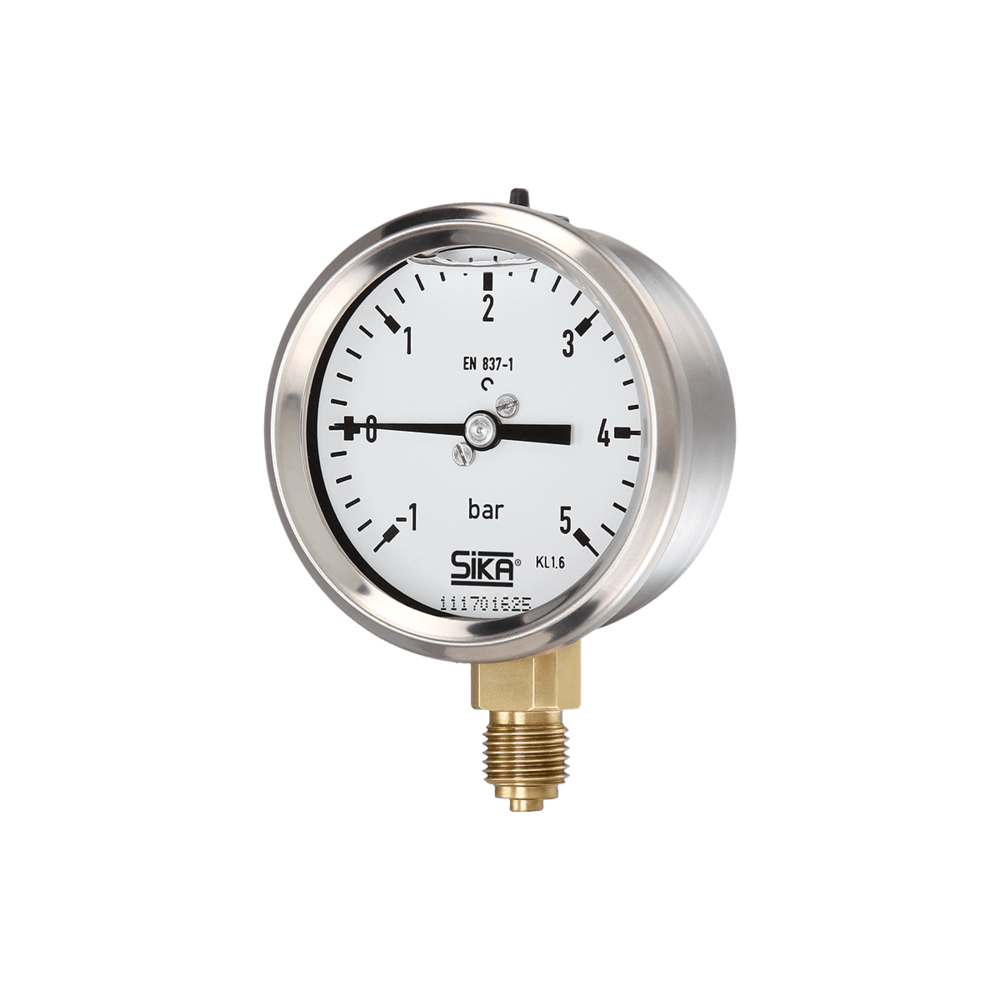

Technical Data
Type	MRE / MRE-g
Version	Bayonet ring case or crimped-on ring case
Nominal size	63 mm
Accuracy acc. EN 13190	EN 837-1, class 1.6 and class 2.5 (for display ranges 0...600 bar and 0...1000 bar)
Medium / Application	Liquid and gaseous media
Process connection	Thread see table (attached data sheet), brass, optional stainless steel
Measurement system	Bourdon spring bronze, optional stainless steel
Degree of protection according to EN 60529	IP54 (IP65 for filled cases with closed pressure compensation insert)
Ambient temperature	-40 to 60 °C (-20 to 60 °C with case filling)
Storage temperature	-40 to 70 °C (-20 to 70 °C with case filling)
Medium temperature	Devices with brass connection max. 60 °C,
	Devices with stainless steel connection max. 200 °C (max. 100 °C with case filling)
Nominal use temperature acc. EN 13190	20 °C
Pressure load capacity	Of full-scale value
->Resting load	75%
->Dynamic load	65%
->Overload	Max.
Approvals	DNV

Technical Data
Type	MRE-g
Version	Crimped-on ring case
Nominal size	80 mm
Accuracy acc. EN 13190	EN 837-1, class 1.0 and class 1.6 (for display ranges 0...600 bar and 0...1000 bar)
Medium / Application	Liquid and gaseous media
Process connection	Thread see table (attached data sheet), brass, optional stainless steel
Measurement system	Bourdon spring bronze, optional stainless steel
Degree of protection according to EN 60529	IP65 for filled cases with closed pressure compensation insert
Ambient temperature	-40 to 60 °C (-20 to 60 °C with case filling)
Storage temperature	-40 to 70 °C (-20 to 70 °C with case filling)
Medium temperature	Devices with brass connection max. 60 °C,
	Devices with stainless steel connection max. 200 °C (max. 100 °C with case filling)
Nominal use temperature acc. EN 13190	20 °C
Pressure load capacity	Of full-scale value
->Resting load	75%
->Dynamic load	65%
->Overload	Max.
Approvals	DNV

Technical Data
Type	MRE / MRE-g
Version	Bayonet ring case or crimped-on ring case
Nominal size	100 mm, 160 mm, 250 mm
Accuracy	EN 837-1, class 1.0
Medium / Application	Liquid and gaseous media
Process connection	Thread see table (attached data sheet), brass, optional stainless steel
Measurement system	Bourdon spring bronze, optional stainless steel
Degree of protection according to EN 60529	IP54 (nominal sizes 100 and 160 mm also IP65 with filled case with closed pressure compensation insert)
Ambient temperature	-40 to 60 °C (-20 to 60 °C with case filling)
Storage temperature	-40 to 70 °C (-20 to 70 °C with case filling)
Medium temperature	Devices with brass connection max. 60 °C,
	Devices with stainless steel connection max. 200 °C (max. 100 °C with case filling)
Nominal use temperature acc. EN 13190	20 °C
Pressure load capacity	Of full-scale value
->Resting load	100%
->Dynamic load	90%
->Overload	Max. 130%
Approvals	DNV
