Technical data

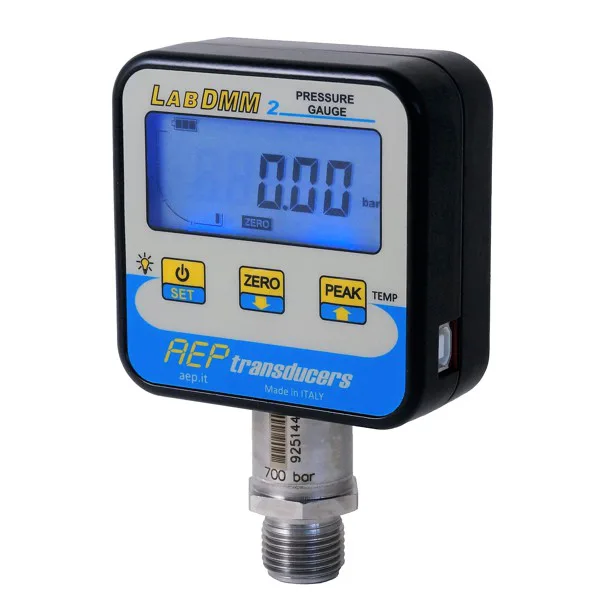

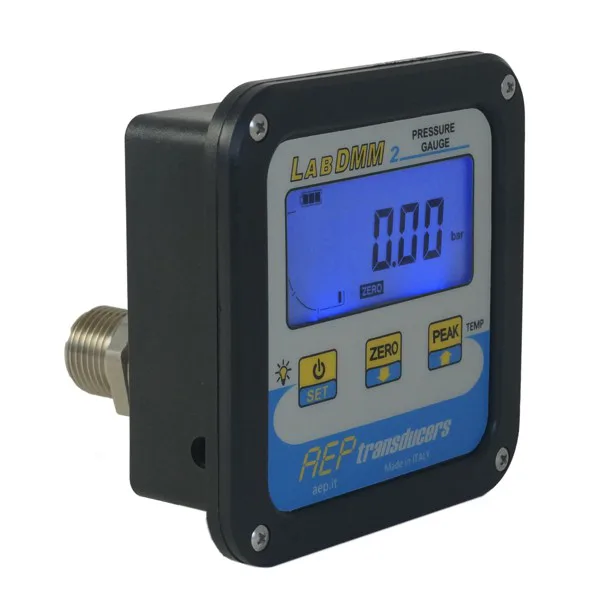

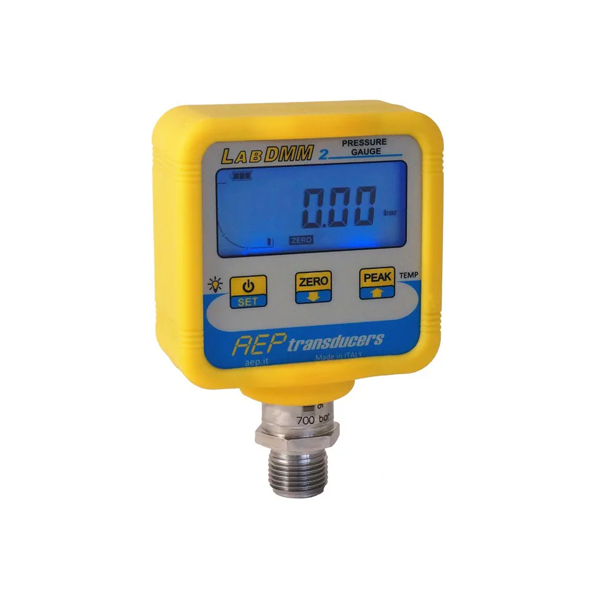

Type	LabDMM2
Pressure ranges	Between -1…3000 bar
ACCURACY (linearity and hysteresis)	0.05 % F.S. (Standard Version), 0.10 % F.S. version 2500 and 3000 bar
Selectable Pressure units	Bar, mbar, kPa, MPa, PSI, mHg, mmHg, mH2O, mmH2O, kg/cm 2
Measuring inputs	1 x direct
TEMPERATURE INDICATION (Unit °C, °F)
a) Resolution	0.1 °C
b) Accuracy	+-1 °C
REFERENCE TEMPERATURE	0 … +50 °C
OPERATING TEMPERATURE	-10 … +60 °C
RELATIVE UMIDITY	< 90 % not condensed
TEMPERATURE EFFECT (1 °C)
a) on zero	<0,002%
b) on sensitivity	<0,002%
INTERNAL RESOLUTION	24 bit
READING PER SECONDS	10 (100ms)
DISPLAY LCD BACKLIGHT	CUSTOM 7 segment
DISPLAY HEIGHT	13mm
RESOLUTION	1, 2, 5, 10
FUNCTION DIGITAL FILTER	from 0 to 5
FUNCTION ZERO	100 % F.S.
FUNCTION PEAK	Positive / Negative (VACUUM)
FUNCTION LOOP	Switch between pressure and temperature
FUNCTION LOCK	Protection of programming
COMMUNICATION PORT	USB 2.0
TRANSMISSION TYPE	on DEMAND or CONTINUOUS
TRANSMISSION IN COUNTINUOUS MODE	10 values per second
MAX DISTANCE	5m
Powre Supply (1 Li-Ion Battery 3.6V 1800mA/h)
Autonomy	50 hours continuous
Battery recharge	From USB port (5Vdc)
MECHANICAL LIMIT VALUES:
a) service pressure	100% F.S.
b) limit pressure	150% F.S.
c) breaking pressure	>300% F.S.
d) highly dynamic pressure	75% F.S.
PROCESS COUPLING	1/2" G Male
SEAL RECOMMENDED	USIT A 63-18
TIGHTENING WRENCH	27 mm
TIGHTENING TORQUE	28 Nm
PROTECTION CLASS (EN 60529)	IP40
MATERIAL SENSOR	17-4 PH STAINLESS STEEL
CONTAINER MATERIAL	ALUMINUM
Overview pressure ranges	Full scale	Display	Resolution
TYPE	bar	bar	bar
RV	0.1	0.1000	0.0001
RV	0.25	0.2500	0.0001
RV	0.5	0.5000	0.0001
ARV	1.0	1.0000	0.0001
ARV	2.5	2.5000	0.0005
ARV	5	5.0000	0.0005
ARV	10	10.000	0.001
RV	20	20.000	0.002
R	50	50.000	0.005
R	100	100.00	0.01
R	250	250.00	0.02
R	350	350.00	0.05
R	500	500.00	0.05
R	700	700.00	0.05
R	1000	1000.0	0.1
R	1500	1500.0	0.2
R	2000	2000.0	0.2
R	2500	2500.0	0.2
R	2500	2500.0	0.2
R	3000	3000.0	0.2
