Technical Data
Vesrion	Standard Version	K2 Version
Accuracy	0.0020%	0.0010%
Resolution	± 200,000 divisions	± 2,000,000 divisions
Input Channels	2	10
Transducers Supported	Force, Weight, Pressure, Torque, Displacement	Force, Weight, Pressure, Torque, Displacement
Power Supply	5Vac programmable for 4 or 6 wires connection	5Vac programmable for 4 or 6 wires connection
Internal Resolution	24-bit	24-bit
Acquisition Frequency	2.5Hz to 4800Hz	2.5Hz to 4800Hz
Data Logger Capacity	130,000 points	130,000 points
Calibration Methods	Full Scale, Polynomial, Equation, Known Weight	Full Scale, Polynomial, Equation, Known Weight

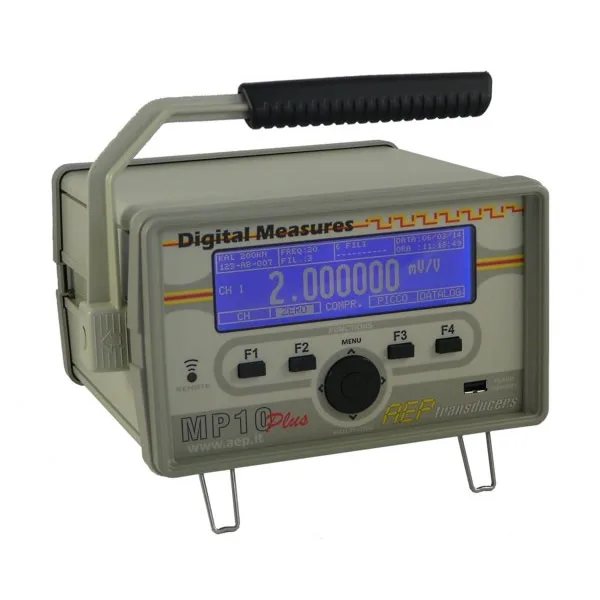

Display	High-resolution graphic LCD (240x64 dots)	High-resolution graphic LCD (240x64 dots)
Protection Class	IP40	IP40
Weight	∼ 0.7 kg	∼ 0.7 kg
Temperature Drift (10°C)	On Zero: ≤ ±0.01%, On Full Scale: ≤ ±0.01%	On Zero: ≤ ±0.01%, On Full Scale: ≤ ±0.01%
Dimensions	Panel mounted, compact design	Panel mounted, compact design

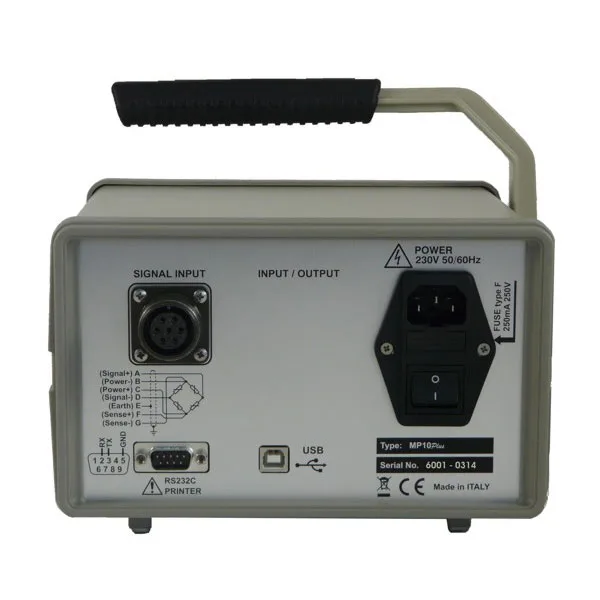

Connectivity	USB and RS232 ports	USB and RS232 ports
Optional Features	Infrared Remote Control	Infrared Remote Control
Applications	Calibration, Quality Control, Testing	Calibration, Quality Control, Testing
