Technical Data

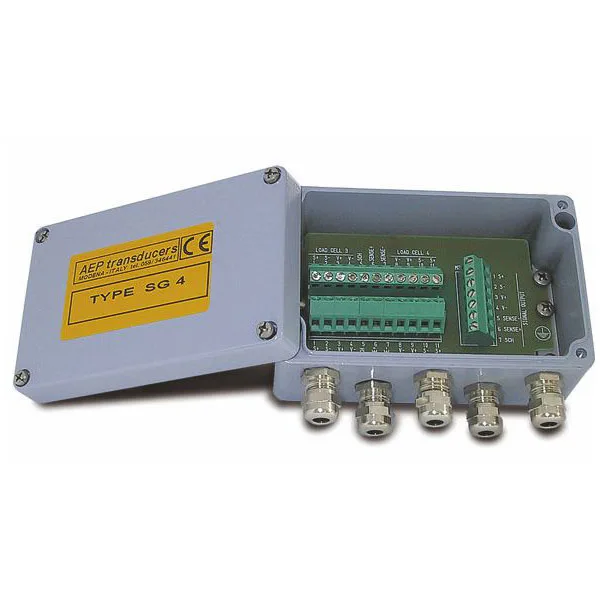

Product Name	SG4 Junction Box
Function	Connects up to 4 load cells in parallel
Compatibility	4 or 6 wire load cell systems
Output Signal	Single combined signal representing the sum of connected load cells
Terminal Boards	5 screw-type terminal boards for electrical connections
Material	Die-cast pressurized aluminum
Protection Class	IP65 (EN60529)
Dust Protection	Complete protection against dust
Water Protection	Protected against water jets
Weight	∼ 0.6 kg
Included Accessories	Pack of 3 metal fairleads (Code: EPG7SET)
Recommendations	Ensure electromagnetic compatibility by grounding screens inside fairleads
