Technical data
Pressure Type (Gauge Pressure - R)	100, 250, 500 mbar, 1, 2.5, 5, 10, 20 bar
Pressure Type (Absolute Pressure - A)	1, 2.5, 5, 10, 20, 50, 100,  250, 350, 500, 700, 1000, 1500, 2000 bar
Linearity & Hysteresis	≤ ± 0.20 %
Temperature Effect (1°C) on Zero	≤ ± 0.015 %
Temperature Effect (1°C) on Sensitivity	≤ ± 0.015 %
Nominal Sensitivity	4-20mA (2 or 3 wires), 0-5 V, 0-10 V
Calibration Tolerance	≤ ± 0.1 %
Nominal Power Supply	4-20mA & 0-5V → 12-24Vdc, 0-10V → 15-24Vdc
Max. Power Supply	28 Vdc
Max. Absorption (3 wires)	30 mA
Max. Absorption (2 wires)	20 mA
Loading Resistance (Tension)	min. 3KΩ
Loading Resistance (Current)	from 0 to 470Ω
Insulation Resistance	>2 GΩ
Zero Balance	± 10% ADJ.
Response Frequency	from 0.5 to 5 kHz
Service Pressure	100 %
Max. Permissible Pressure	150 %
Breaking Pressure	> 300 %
Highly Dynamic Pressure	75 %
Reference Temperature	+23°C
Working Temperature Range	-10 / +70°C
Storage Temperature Range	-20 / +80°C
Process Coupling	1/4"Gas (*1/2"Gas) Male / BSP Male
Tightening Wrench	27 mm
Tightening Torque	28 Nm
Protection Class (EN 60529)	IP65
Sensor Execution Material	Stainless Steel 17-4 PH

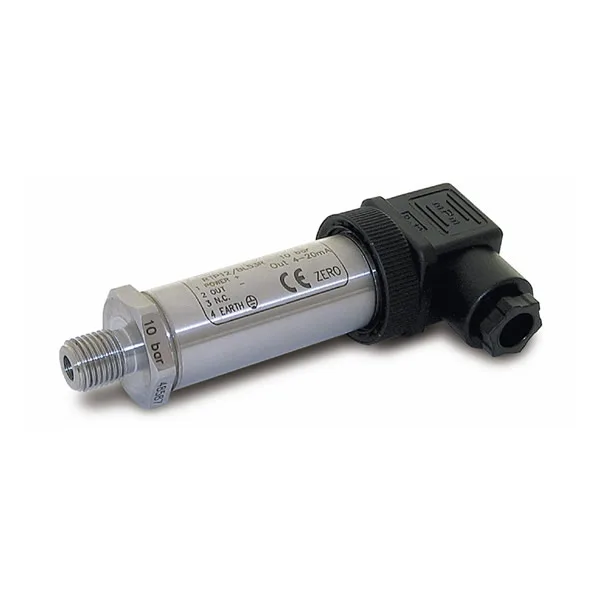

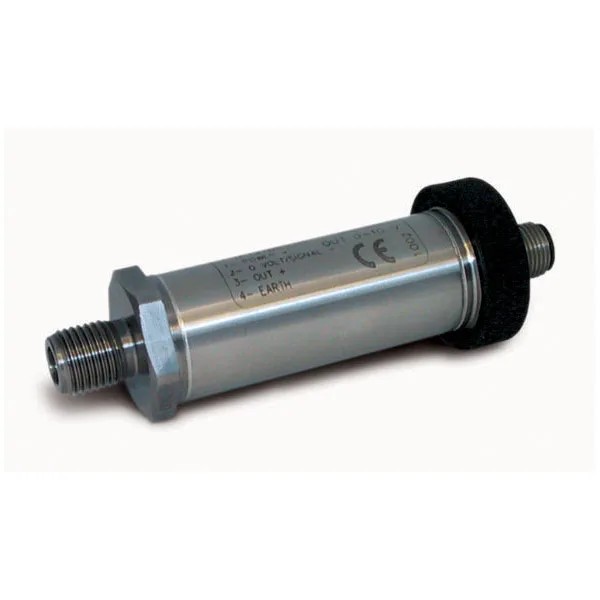

Electrical Connection	Connector DIN 43650-A / ISO 4400, M12X1 Connector, Molded cable (3m)
