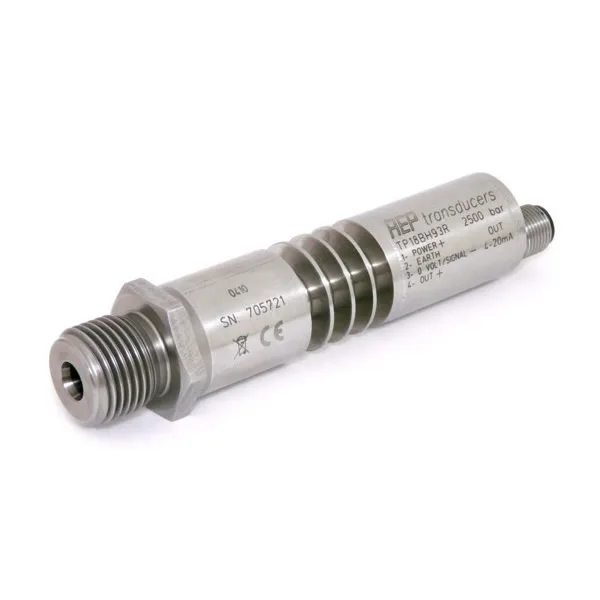

TP18 > Pressure
-
제품 정보
제품 상세설명
Technical data |
Pressure Type
(Relative Pressure - R) | 5,
10, 20, 50, 100, 250, 350, 500, 700, *1000, *1500, *2000, *2500 bar |
Linearity
& Hysteresis | ≤ ± 0.20 % |
Temperature
Effect (1°C) on Zero | ≤ ± 0.015 % |
Temperature
Effect (1°C) on Sensitivity | ≤ ± 0.015 % |
Nominal
Sensitivity | 4-20mA (3 wires), 0-5
V, 0-10 V |
Calibration
Tolerance | ≤ ± 0.1 % |
Nominal Power
Supply | 4-20mA & 0-5V →
12-24Vdc, 0-10V → 15-24Vdc |
Max. Power
Supply | 28 Vdc |
Max.
Absorption | 30 mA |
Loading
Resistance (Tension) | min. 3KΩ |
Loading
Resistance (Current) | from 0 to 470Ω |
Insulation
Resistance | >2 GΩ |
Zero Balance | ± 10% ADJ. |
Response
Frequency | from 0.5 to 5 kHz |
Service
Pressure | 100 % |
Max.
Permissible Pressure | 150 % |
Breaking
Pressure | > 300 % |
Highly Dynamic
Pressure | 75 % |
Reference
Temperature | +23°C |
Medium
Temperature | -10 / +150°C |
Ambient
Temperature | -10 / +70°C |
Storage
Temperature | -20 / +80°C |
Process
Coupling | 1/4"Gas
(*1/2"Gas) Male / BSP Male |
Tightening
Wrench | 27 mm |
Tightening
Torque | 28 Nm |
Protection
Class (EN 60529) | IP65 |
Sensor
Execution Material | Stainless Steel 17-4
PH |
Electrical
Connection | Connector M12X1,
Molded shielded PVC cable (3m) |
-
