Technical data

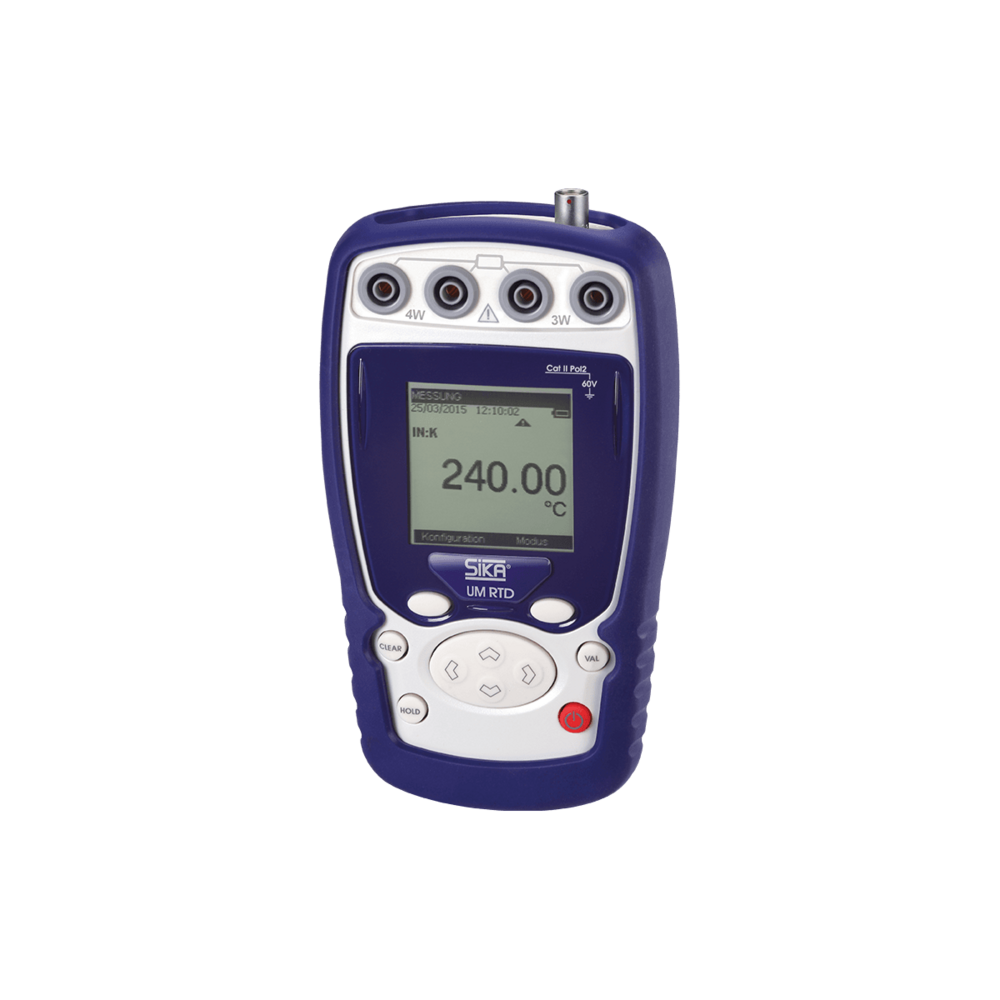

Type	UM RTD.2
Measuring range / resolution	-200.00...850.00 °C / 0.01 °C
Accuracy	±0.012 % of reading ±1 digit + k
Equipment
Input	Switchable: Pt50, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Ni100, Ni120, Ni1000, 0...3600 Ω
Multi-conductor connection	2-wire / 3-wire / 4-wire
Output	-
Measurement features
Data memory	for 10 000 values
General data
Units	°C / °F or user-defined
Sensor Connection	4x 4 mm-socket / 1x 4-pole M8 plug
Linearisation	Offset Characteristic curve according to DIN EN 60751 User-defined characteristic curve
Power Supply	4x 1.5 V AA or Accu incl. power supply (optional)
PC Interface	Mini-USB, galvanically isolated / short-circuit proof
Display and Housing
Display	Multi-functional LCD, 6 digit, with illumination
Functions	Hold, Auto-Off, Alarm and time/date, Min-/max alarm signal via display, interface and buzzer, Real time clock with year and date
Housing Material	Shock-resistant ABS plastic with protective cover
Dimensions (H x W x T)	157 x 85 x 45 mm
Weight	Approx. 306 g
