Technical data

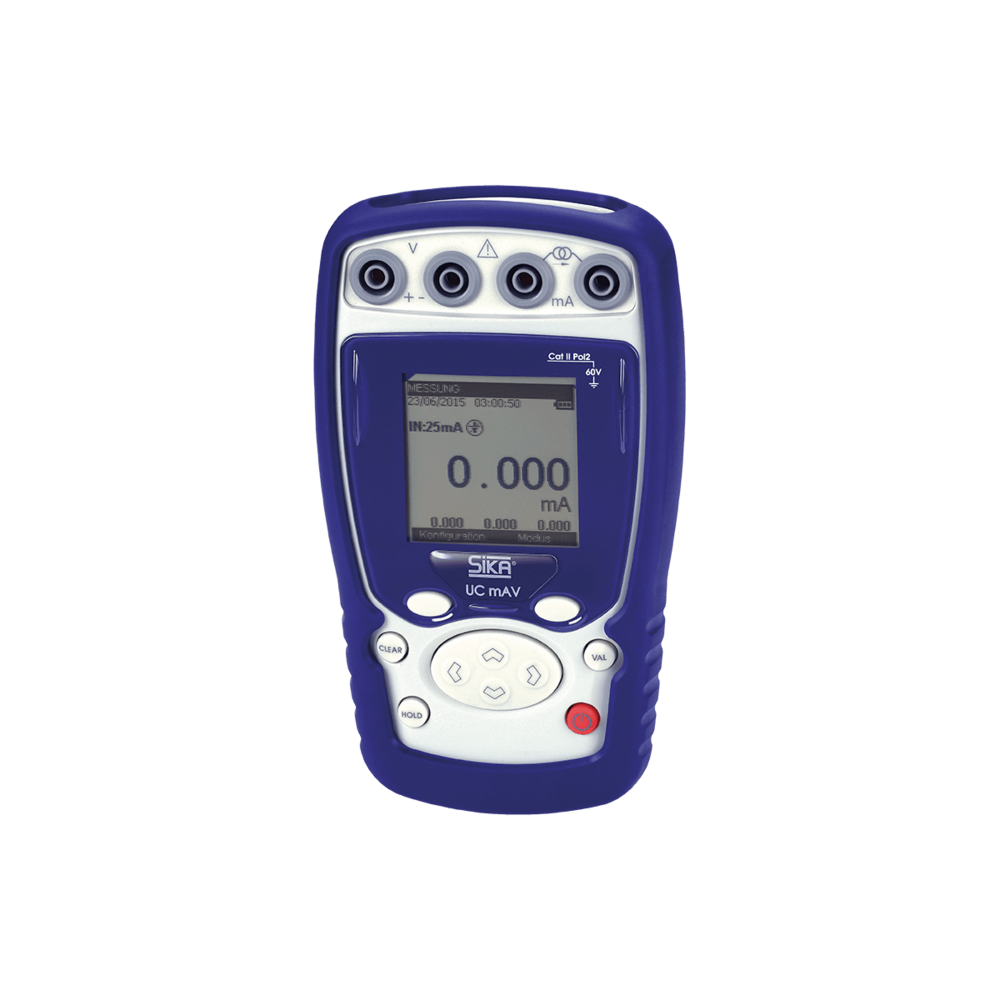

Type	UC mAV.2
Current (mA)
Loop current signal generation	0(4)...25 mA
Loop current signal measurement	-6...25 mA
Accuracy (of reading + const.)	±0.015 %
Current loop supply	24 V ±10 %, 25 mA
HART Communication protective resistor	250 Ω
Voltage (V)
Voltage signal generation	0...10(15) V
Voltage signal measurement	-5...50 V
Accuracy (of reading + const.)	±0.015 %
Continuity (O/C)
Continuity measurement	O / C
Switching threshold „open“	1 kΩ
General data
Sensor connection
Power supply	4 x 1.5 V AA-battery Operating time approx. 25 h or rechargeable battery including power adapter 230 VAC / 12 VDC (optional)
PC Interface	mini-USB Type B
Operator guidance	Menu with pull-down windows
Display	Multifunction display LCD, 6 digit
Housing
Dimensions	160 x 85 x 45 mm (H x W x D)
Weight	Approx. 300 g
