Technical data

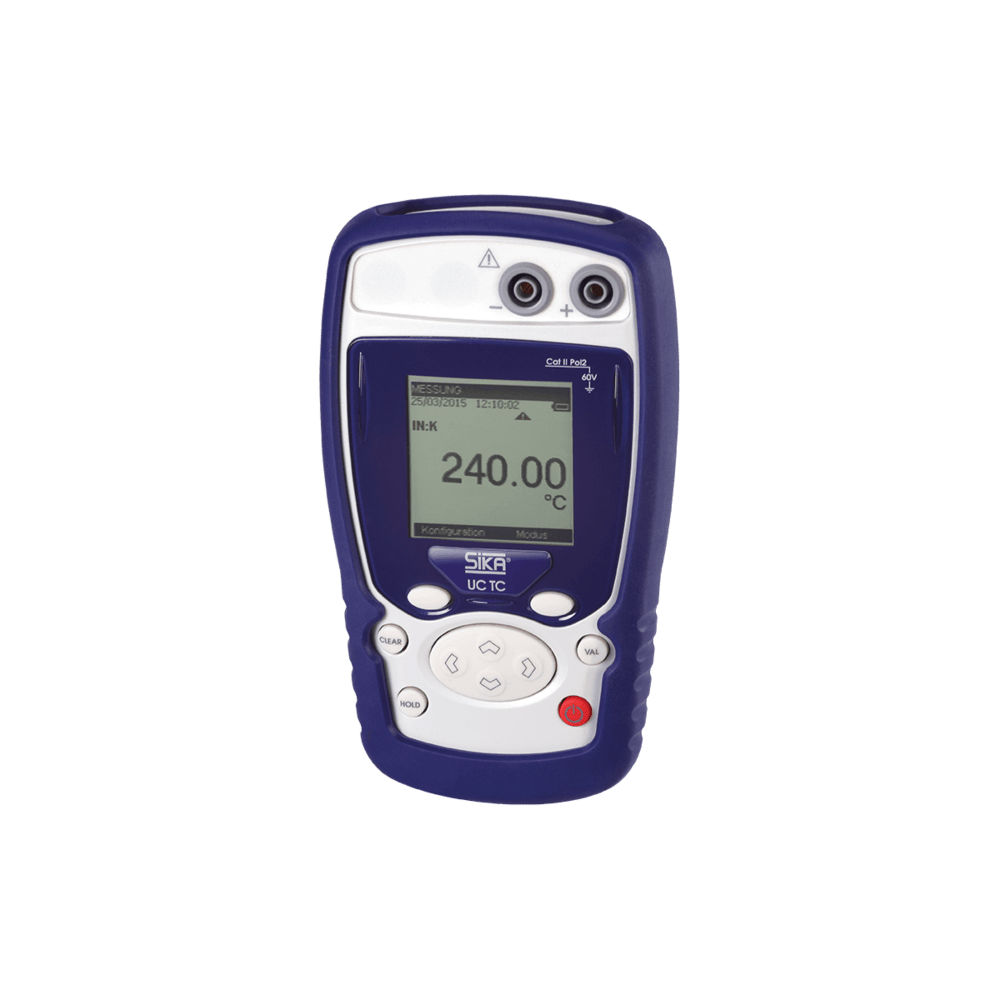

Type	UC TC.2
Thermoelemente (TC)
Generation and measurement of TC signals	J, K, T, R, S, B, N, E
mV-generator function	-9.5...80 mV
mV-measurement function	-10...100 mV
Accuracy (of reading + const.)	±0.02 %
Selectable temperature unit	°C / °F
Internal comparison point	±0.3 °C
General data
Sensor connection	4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips (optional)
Power supply	4 x 1.5 V AA-battery, operating time approx. 40 h or rechargeable battery including power adapter 230 VAC / 12 VDC (optional)
PC Interface	mini-USB Type B
Operator guidance	Menu with pull-down windows, programming and control via PC
Display	Multifunction display, LCD, 6 digit
Housing	ABS plastic with protective cover
Dimensions	160 x 85 x 45 mm (H x W x D)
Weight	Approx. 300 g
