Technical data

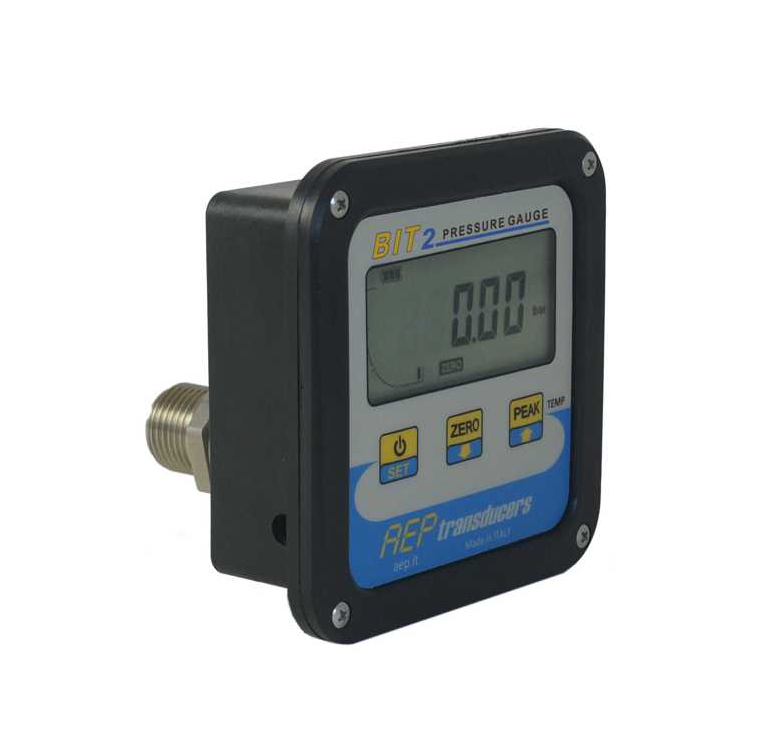

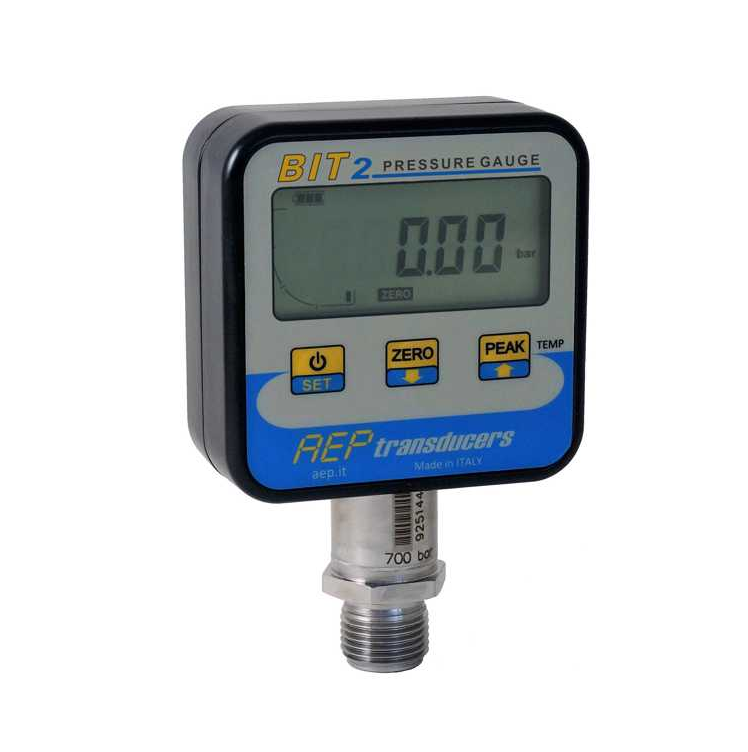

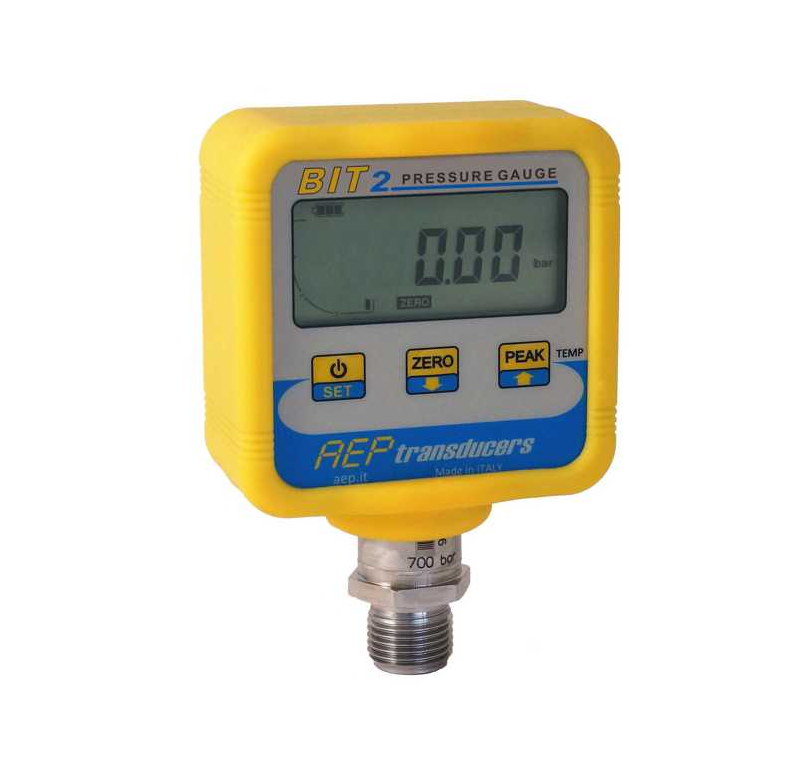

Type	BIT2
Pressure ranges	Between -1…3000 bar
ACCURACY (linearity and hysteresis)	0.20 % F.S.
Selectable Pressure units	Bar, mbar, kPa, MPa, PSI, mHg, mmHg, mH2O, mmH2O, kg/cm 2
Measuring inputs	1 x direct
TEMPERATURE INDICATION (Unit °C, °F)
a) Resolution	0.1 °C
b) Accuracy	+-1 °C
REFERENCE TEMPERATURE	0 … +50 °C
OPERATING TEMPERATURE	-10 … +60 °C
RELATIVE UMIDITY	< 90 % not condensed
TEMPERATURE EFFECT (1 °C)
a) on zero	<0,002%
b) on sensitivity	<0,002%
INTERNAL RESOLUTION	16 bit
CONVERSIONS PER SECONDS	10 (100ms)
DISPLAY LCD BACKLIGHT	CUSTOM 7 segment
DISPLAY HEIGHT	13mm
RESOLUTION	1, 2, 5, 10
FUNCTION DIGITAL FILTER	from 0 to 5
FUNCTION ZERO	100 % F.S.
FUNCTION PEAK	Positive / Negative (VACUUM)
FUNCTION LOOP	Switch between pressure and temperature
FUNCTION LOCK (LOC)	To protect parameters change
Powre Supply (NON rechargeable batteries)
Autonomy	~ 1 YEAR
Battery recharge	2 x 1.5V AAA batteries
MECHANICAL LIMIT VALUES:
a) service pressure	100% F.S.
b) limit pressure	150% F.S.
c) breaking pressure	>300% F.S.
d) highly dynamic pressure	75% F.S.
PROCESS COUPLING	1/2" G Male
SEAL RECOMMENDED	USIT A 63-18
TIGHTENING WRENCH	27 mm
TIGHTENING TORQUE	28 Nm
PROTECTION CLASS (EN 60529)	IP65
MATERIAL SENSOR	17-4 PH STAINLESS STEEL
CONTAINER MATERIAL	ALUMINUM
Overview pressure ranges	Full scale	Display	Resolution
TYPE	bar	bar	bar
RV	0.1	0.1000	0.0001
RV	0.25	0.2500	0.0001
RV	0.5	0.5000	0.0001
ARV	1.0	1.000	0.001
ARV	2.5	2.500	0.001
ARV	5	5.000	0.001
ARDV	10	10.00	0.01
RDV	20	20.00	0.01
RD	50	50.00	0.01
RD	100	100.0	0.1
RD	250	250.0	0.1
RD	350	350.0	0.1
RD	500	500.0	0.1
RD	700	700.0	0.1
R	1000	1000	1
R	1500	1500	1
R	2500	2500	1
R	3000	3000	1
