Technical data

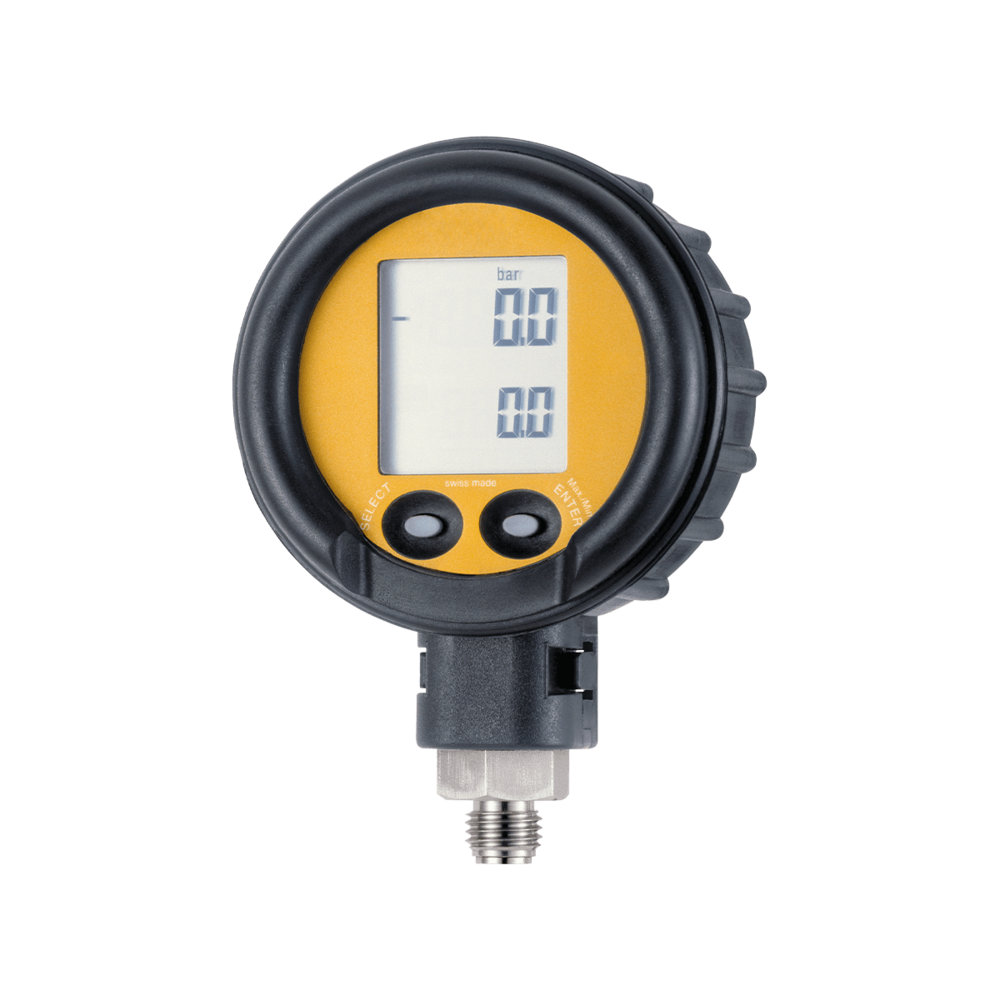

Type	D-Ex
Pressure ranges	Between -1…700bar
Accuracy (full scale)	0.1%
Adjustment options (Tare / Zero)	O
Selectable Pressure units	Bar, mbar, hPa, kPa, MPa, PSI, kp/cm²
Measuring inputs	1 x direct
Measuring rate Standard	500 ms
Display	Multi-functional LCD, 5 digit with Min / Max value
Process connection
Thread	G¼ / H16 UNF
Material	Stainless steel 1.0718 zinc-plated
	Stainless steel 1.4435
Medium temperature	0...50 °C
For aggressive media	O
Housing
Degree of protection	IP65
Dimension	Ø 70 mm, T=30 mm H=100 mm
Material	ABS plastic
Operating temperature	0...50 °C
Weight	130 g
Power supply
Auto-off function	O
Battery type	1x 3 VCR
Battery operation	1000 h
Approvals	Ex II 1G EEx ia II C T5 / T6
Overview pressure ranges		Resolution
Pressure range	-1...3 bar	1 mbar
	-1...30 bar	10 mbar
	-1...60 bar	10 mbar
	0...300 bar	100 mbar
	0...700 bar	200 mbar
