Technical data

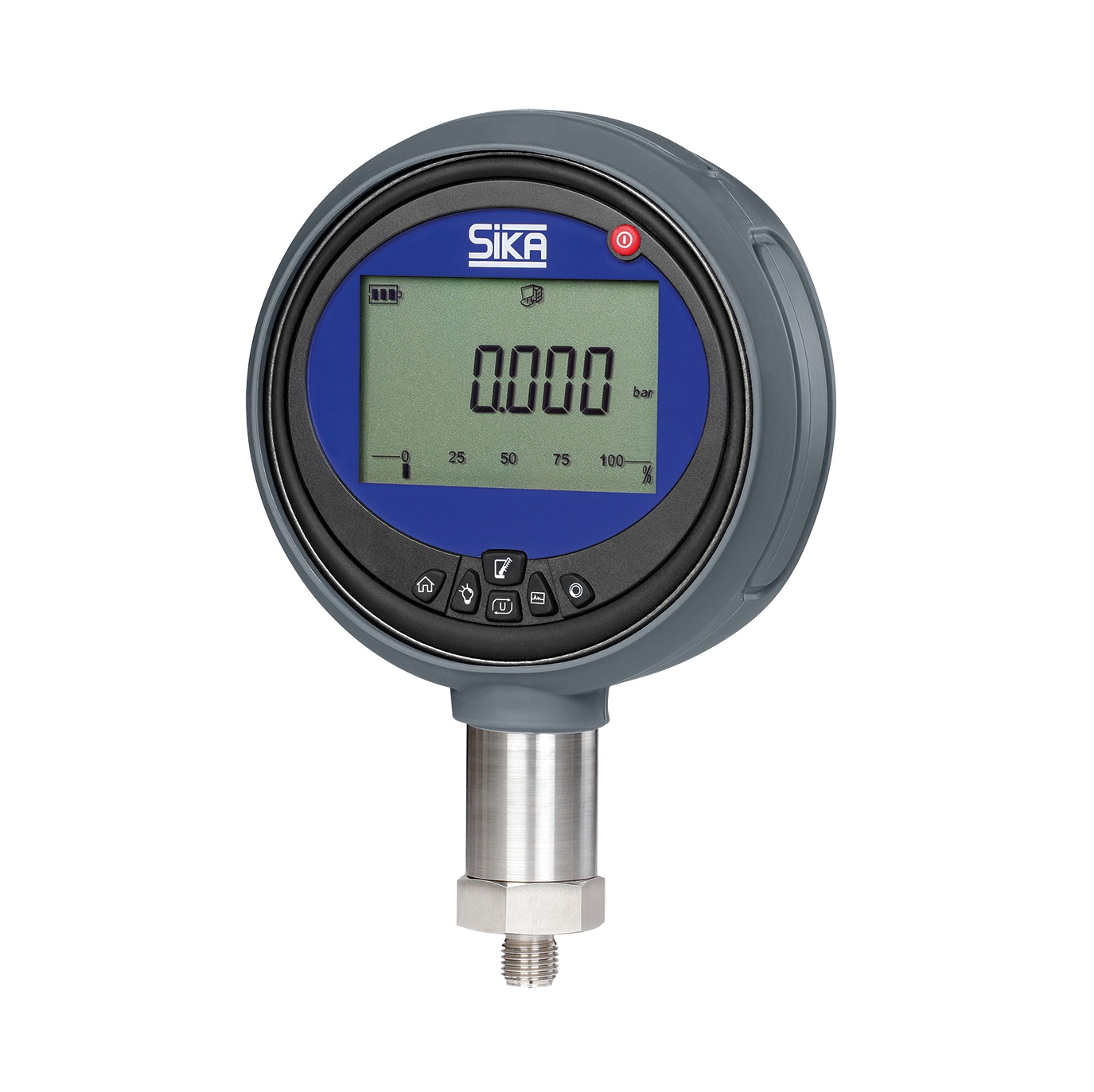

Type	B2
Pressure Ranges	Between -1..2500 bar
Accuracy (± of full scale value)	±0.02%, ±0.05% or ±0,10%
Selectable Units	bar / mbar, Pa, kPa / MPa, PSI, kg/cm², inHg, inH2O, mmH2O, mmHg
Display
Type	Multifunctional LCD, 5 ½ digit, with background lighting
Functions	Bar graph, display of time and date, temperature, battery status
Measuring system
Pressure measuring cell	Piezo resistive
Overpressure safety	1.2-fold Pmax
Compensation Temperature	0...50 °C
Measuring rate actual value	10 ms
Measuring rate bar graph	250 ms (without Logger) / 100 ms (with Logger)
Process Connection
Process Connection	G¼ (up to 1000 bar), NPT ¼ (up to 1000 bar), M20 x 1.5 (from 1600 bar)
Connection Material	Stainless steel 1.4301 / AISI 304
Housing
Dimensions	Ø 120 mm, D=30 mm H=196 mm with protection cap
Weight	0.7 kg
Power Supply
Power Supply	Built-in battery, rechargeable, charger included
Battery Life	40...700 hours with one battery charge
Overview pressure ranges	Pressure Range	Accuracy	Connection Thread
Pressure range	-1…1 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…2.5 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1...6 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…10 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…16 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…25 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…40 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	-1…60 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…100 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…160 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…250 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…400 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…600 bar	±0.02% or ±0.05%	G1/4 or 1/4NPT
	0…1000 bar	±0.05%	G1/4 or 1/4NPT
	0…1600 bar	±0.1%	M20x1.5
	0…2500 bar	±0.1%	M20x1.5
