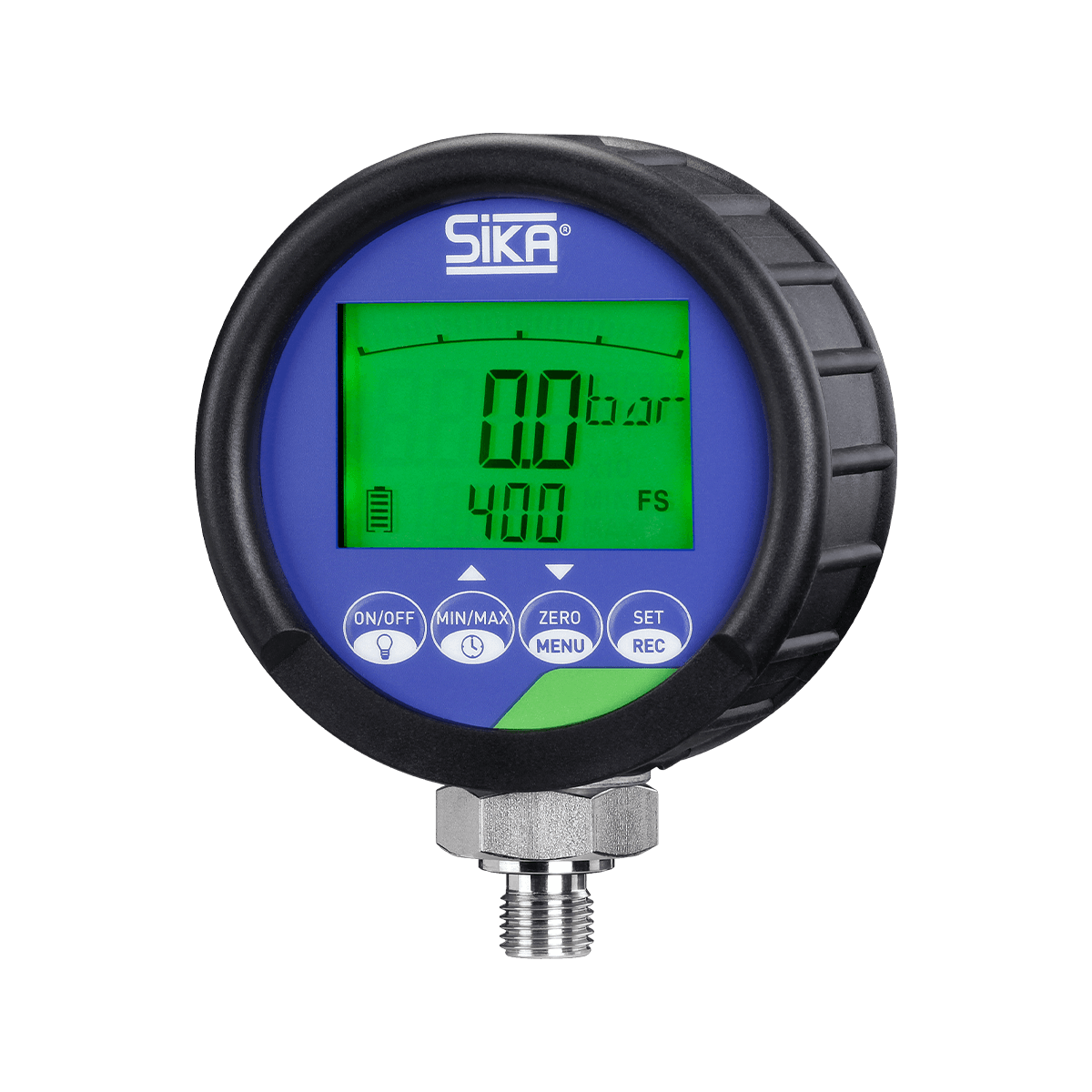

Technical data
Type	E2	D2	C2
Pressure ranges	Between -1...1000 bar
Accuracy (± of full scale value)	0.5%	0.1%	0.05% (0.1% in vacuum)
Units
Pressure	bar / mbar, kPa / MPa, PSI, kg/cm², mH2O, inH2O
Display
Type	Multifunctional LCD, 4 ½ digit, with background lighting
Functions	Bar graph, pressure unit, display filter, MIN/MAX value, Overpressure indicaton 110 % of full scale pressure value (FS)
Measuring system
Pressure measuring cell	≤ 10 bar piezo resistive ≥ 20 bar thin film strain gauge
Temperature compensation	0...50 °C
Temperature error	0.005 % of full scale pressure value (FS) / K
Measuring rate actual value	10 ms
Measruing rate bar graph	50 ms
Process connection
Thread ISO 1179-2	G¼ with NBR gasket, AF27
Material	Stainless steel 1.4404 (SUS 316L)
Medium temperature	-20...80 °C
Housing connection	270° axially rotatable
Housing
Degree of protection DIN EN 60529	IP67
Dimensions	Ø 90 mm, D=45 mm H=120 mm with protection cap
Materials	Cast zinc with protection cap made of TPE
Ambient conditions	0...50 °C with air humidity ≤85 % r.h.
Weight	540 g
Vibration resistance IEC 60068-2-6	5g up to 500 Hz
Shock resistance IEC 60068-2-29	25g for 11 ms
Power supply
Auto-off function	Selectable switch-off time 5 minutes
Battery type	2x 1.5 V AA
Battery operation	1500 h
Approvals	DNV type approval Certificate Nr. TAA00001CJ

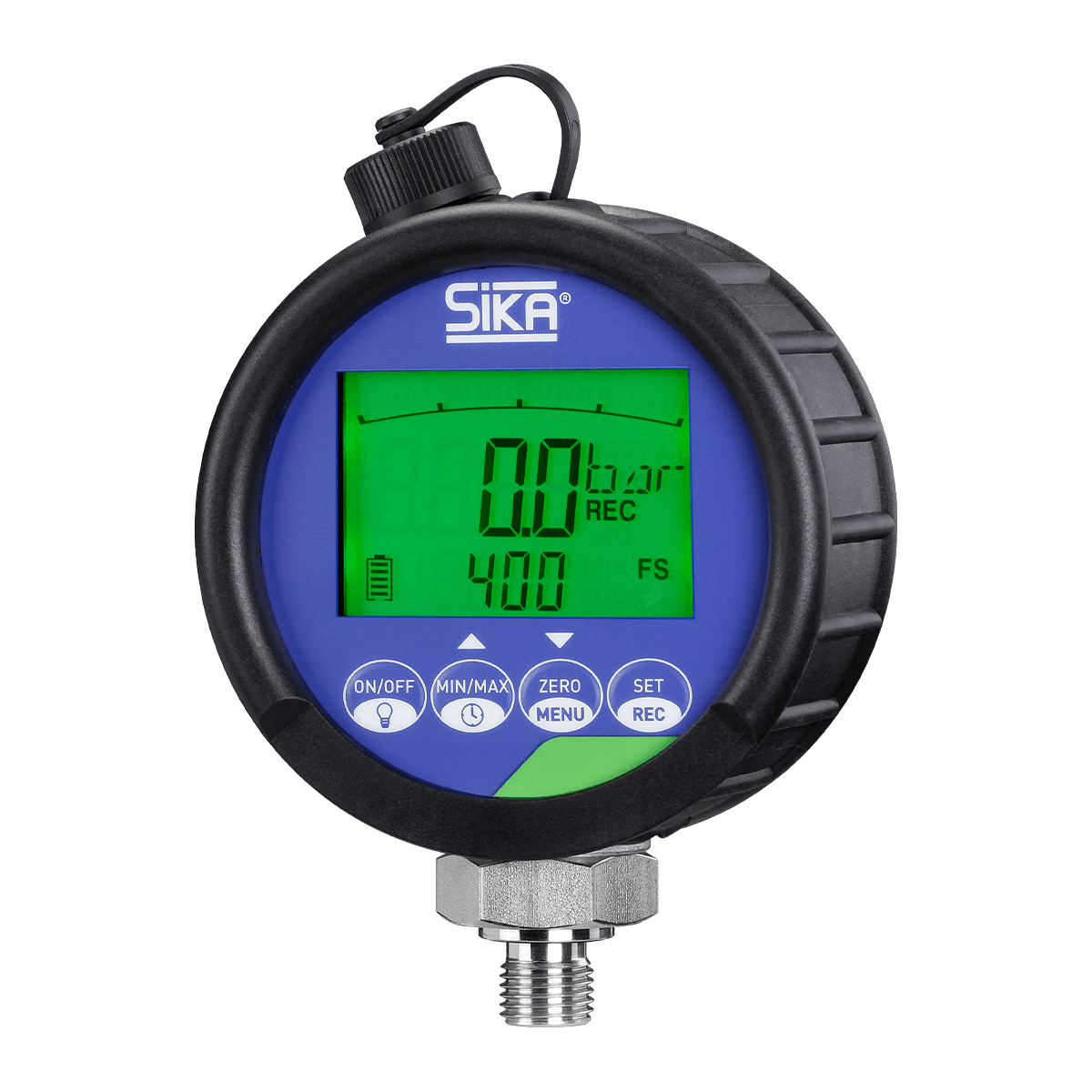

Data logger (optional)
Max. data sets	27000 per recording series
Record series	1...10
Storage rate	0.1…6.4 s - automatically per recording duration
Max. recording duration	48 h
Data set information	time / actual pressure / MIN/MAX value
Digital data transmission	serial USB 2.0
Interface	Mini USB port
PC software	Detection as USB data storage device, spreadsheet program
File format	.csv
Overview pressure ranges		Resolution	max. Overload
Pressure range	-1…3bar (only E2, D2)	0.001bar	18bar
	-1…5bar (only E2, D2)	0.001bar	18bar
	-1…10bar	0.001bar	30bar
	-1...20bar	0.001bar	50bar
	-1…40bar	0.01bar	80bar
	-1…60bar	0.01bar	120bar
	0…100bar	0.01bar	200bar
	0…160bar	0.01bar	320bar
	0…250bar	0.1bar	500bar
	0…400bar	0.1bar	800bar
	0…700bar	0.1bar	1200bar
	0…1000bar	0.1bar	1500bar
