Type	DiTemp DT3 series
Technical data

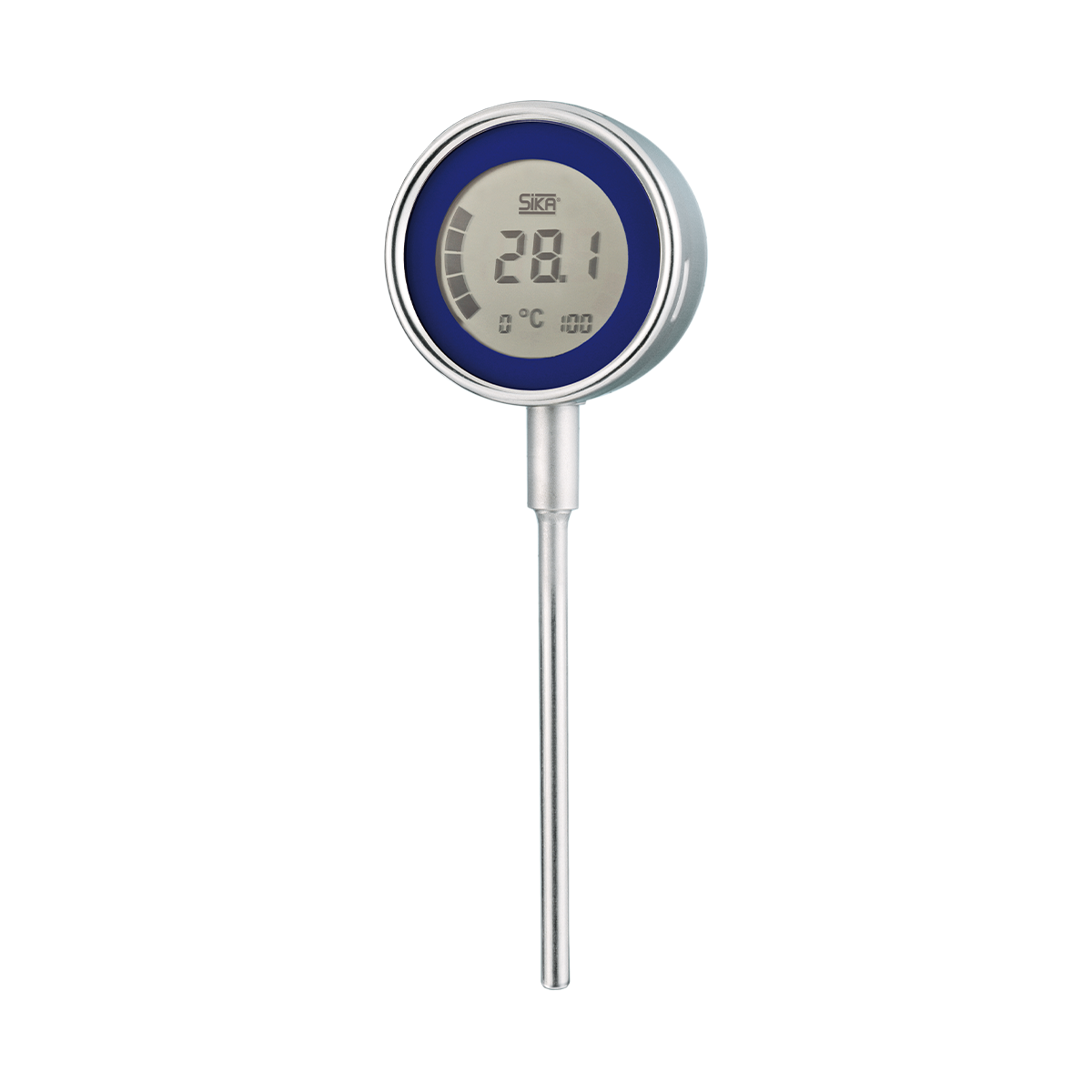

Version	Straight
Dimensions	80mm × 45mm (D × D)
Measuring range	-40…300℃
Medium / Application	Liquid and gaseous media
Immersion tube length	100…400 mm
Immersion tube diameter	6 or 8 mm
Process connection	Without, G¼, G½, G¾, M20 x 1.5, M27 x 2
Pressure rating	PN 25
Display	Bar graph 17 divisions 3 ½ digit, 7 segment LCD, 14 mm high
Resolution	0.1 K in the range <200 °C 1 K in the range >200 °C
Measuring rate	3 s
Ambient / Storage temperature	5…60 °C
Degree of protection EN 60529	IP65
Electrical data
Measuring element	Pt1000 / 2-wire / Class B
Accuracy	±1 % of range ±1 digit
Electrical connection	5-pin plug connector M12 x 1
Supply voltage	Lithium battery, 10 years service life (display unit)
Analogue output
Current signal	4…20 mA / 2-wire (loop supply 15…26 VDC)
Scaling	Measuring range
Signal error	Error signal according to NAMUR NE43
Burden	Max. 500 Ω
Alarm output
Quantity	2 x normally open contact
Version	Solid-state relay
Voltage	24 VAC/DC
Output current / switching current	Max. 100 mA
Switching point / Hysteresis	Programmable
Alarm delay	0...999.9 s programmable
