Technical Data

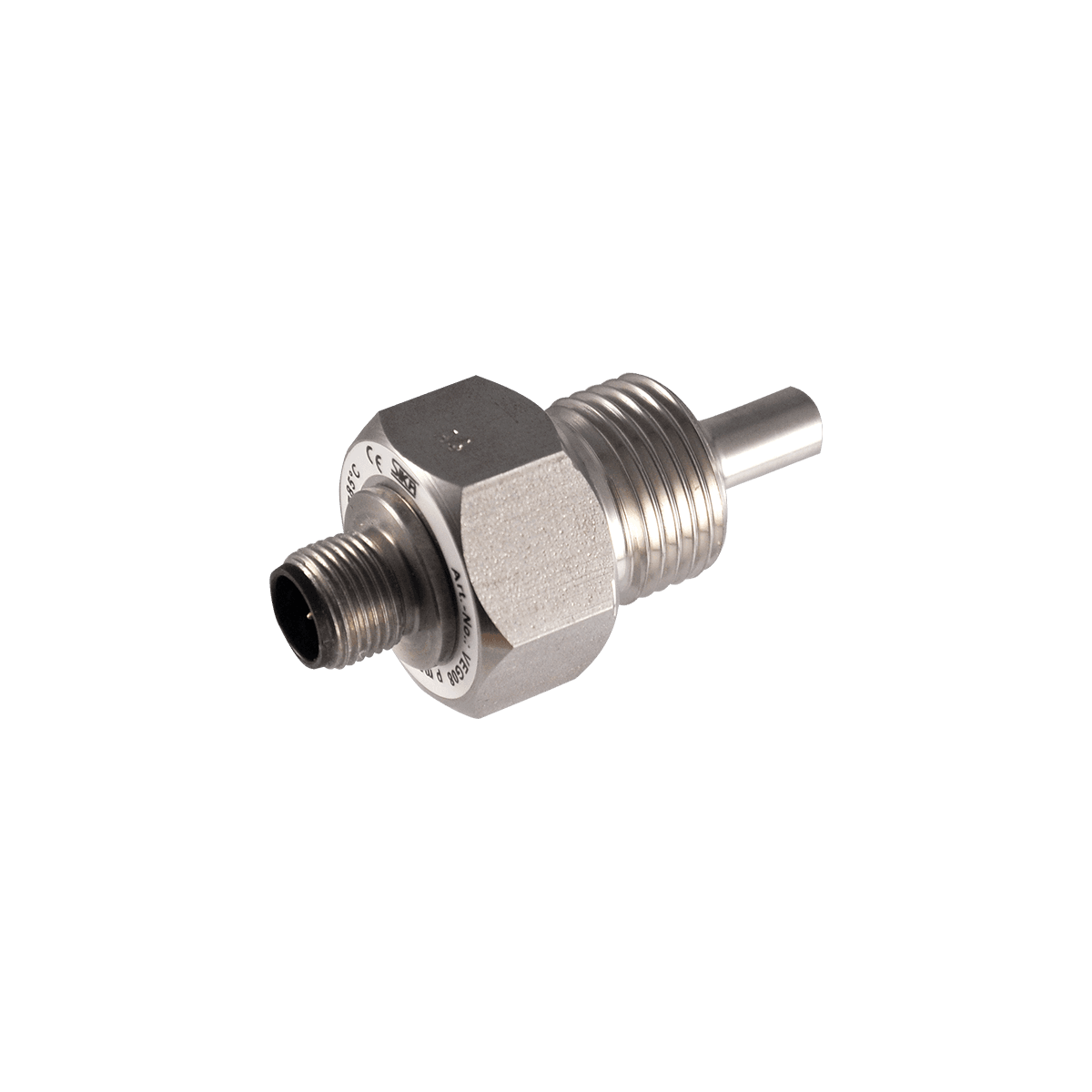

Type	VEG (separate version)
Length of measuring probe	31mm (VEG08), 48mm (VEG09)
Thread length	15mm (VEG08), 35mm (VEG09)
Temperature gradient	4 °C/s
Stand-by time	Approx. 2...15 s
Response time	Approx. 1...13 s
Max. pressure rating	200 bar
Medium temperature	-20...85 °C
Ambient temperature	-20...60 °C
Process connection	G½ male
Electrical connection	4-pin-plug connector M12 x 1
Schutzart EN 60529	IP67

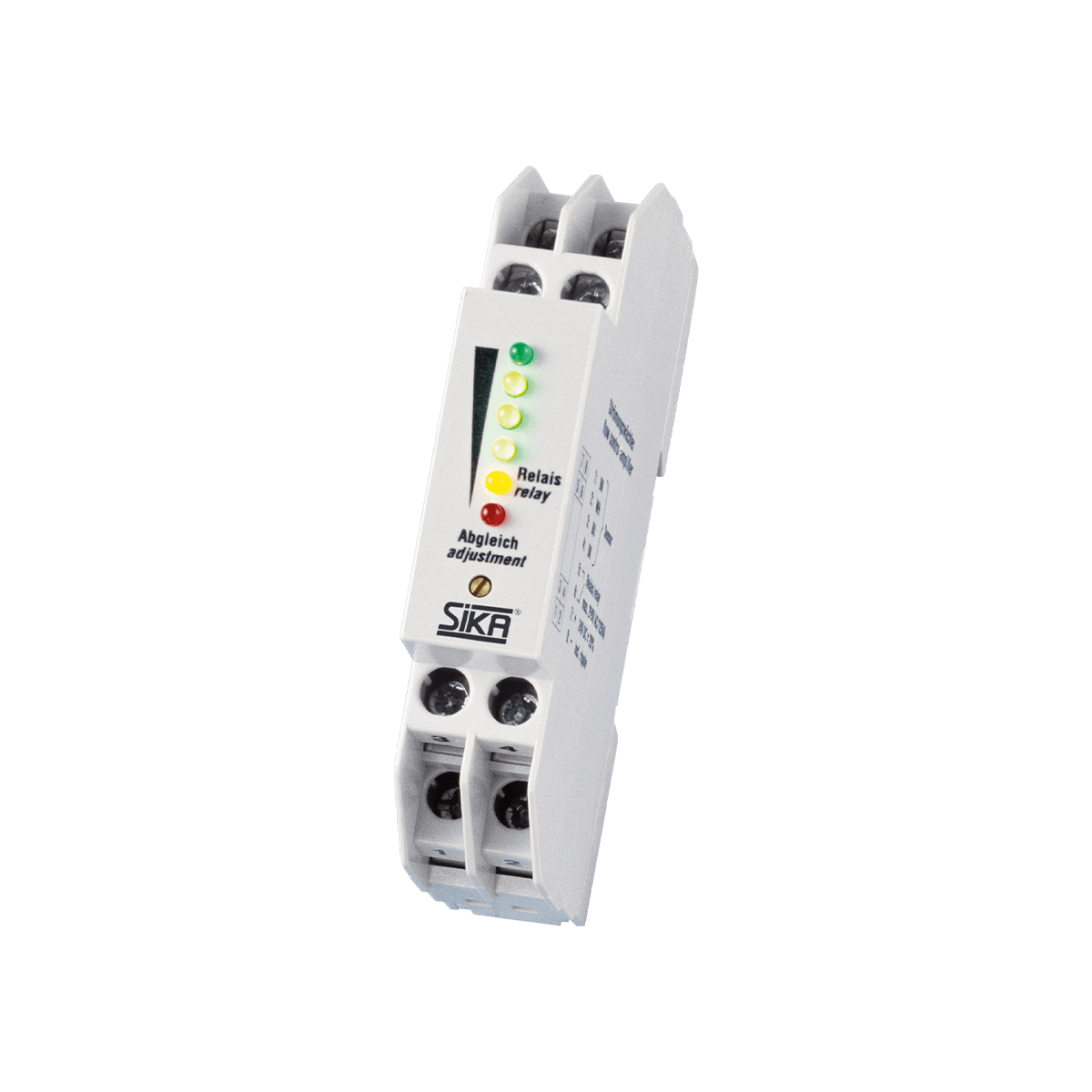

Switching transducer	Separate
Display	LEDs: 1 red = alarm, 2 yellow = switching point, 3 - 6 green = flow
Power supply	24 VDC (±20 %) (standard)
Current consumption	80 mA
Output signal	Relay, closing contact
Max. switching voltage	230 VAC/250 VDC;
Max. output current	1 A
Max. switching capacity	125 VA / 60 W
