Technical data

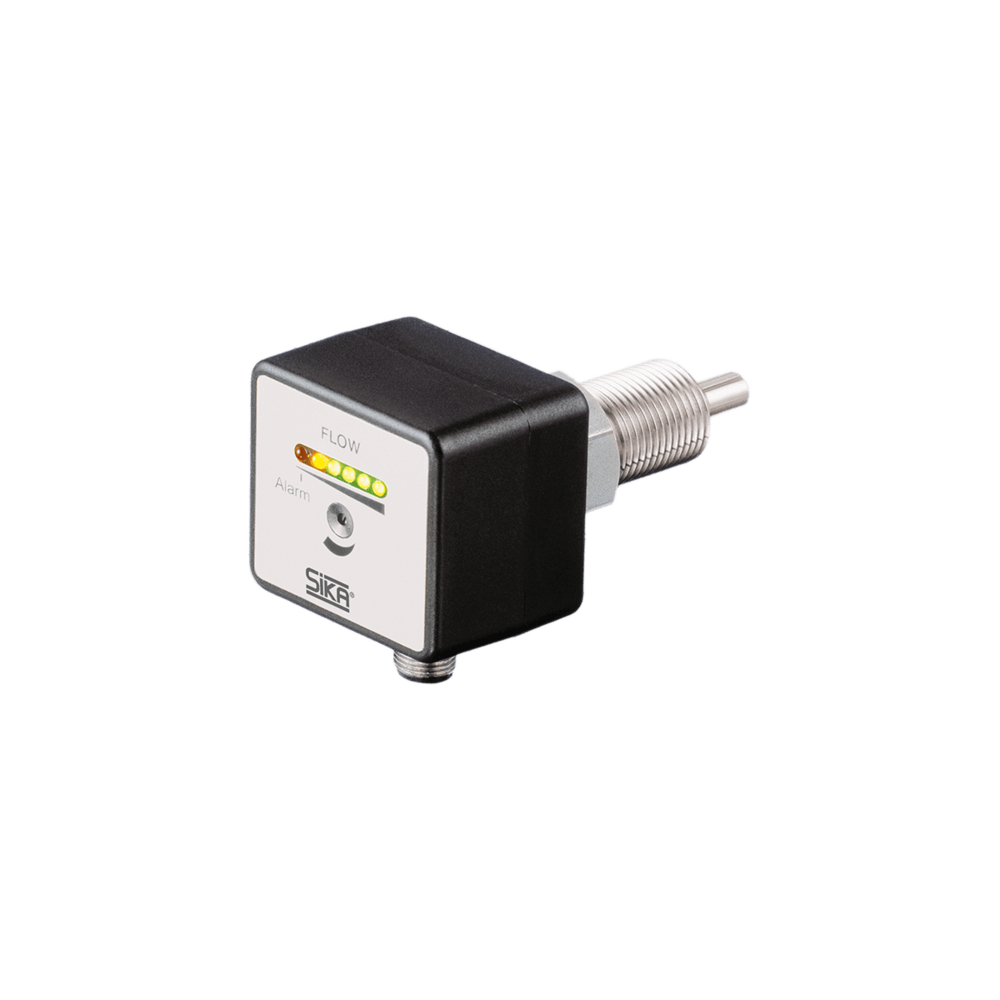

Type	VES (compact version)
Length of measuring probe
VES08	31 mm
VES09	48 mm
VES12	100 mm
VES13	170 mm
Thread length
VES08	5 mm
VES09	29 mm
VES12	20 mm
VES13	20 mm
Temperature gradient	4°C/s
Detection range
Water	1...150 cm/s
Oil	3...300 cm/s
Stand-by time	Approx. 2...15 s
Response time
VES08 / VES09	Approx. 1...13 s
VES12 / VES13	Approx. 5...20 s
Max. pressure rating	200 bar
Medium temperature	-20...85  °C
Ambient temperature	-20...60  °C
Process connection	G½ male
Electrical connection	4-pin-plug connector M12 x 1
Degree of protection EN 60529	IP67
Switching transducer	Integrated
Display	LEDs: 1 red = alarm, 2 yellow = switching point, 3 - 6 green = flow
Power supply	24 VDC ( ± 10 %)
Current consumption	70 mA
Output signal	PNP, open collector
Max, output current	400 mA (25 °C)
