Technical data

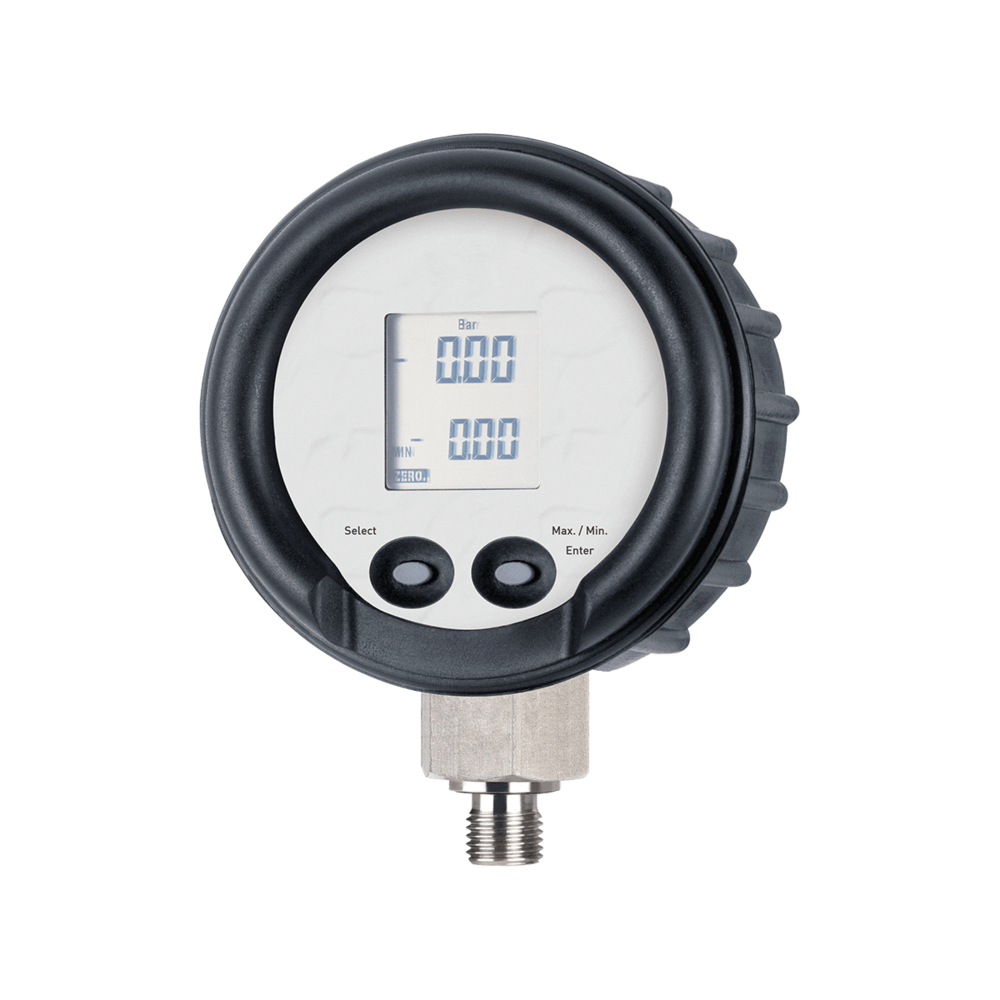

Type	L-Ex
Pressure ranges	Between -1...1000 bar
Accuracy (full scale)	0.05%
Adjustment options (Tare / Zero)	O
Selectable Pressure units	Bar, mbar, hPa, kPa, MPa, PSI, mmHg, inHg, cmH2O, mH2O, inH2O, ftH2O, Kp/cm²
Measuring inputs	1 x direct
PC connection	RS 485
Measuring rate Standard	500 ms
Display	Multi-functional LCD, 5 digit with Min / Max value
Process connection
Thread	G¼
Material	Stainless steel 1.4435
Medium temperature	0...50 °C
For aggressive media	O
Housing
Degree of protection	IP65 (Front) / IP54
Dimension	Ø 80 mm, T=40 mm H=120 mm
Material	ABS plastic
Operating temperature	0...50 °C
Weight	210 g
Power supply
Auto-off function	O
Battery type	1x 3 VCR
Battery operation	2000 h
Approvals	Ex II 2G Ex ia II C T6
Overview pressure ranges		Resolution
Pressure range	-1...2 bar (relative)	0.1 mbar
	-1...10 bar (relative)	1 mbar
	-1...20 bar (relative)	1 mbar
	0...3 bar (absolute)	0.1 mbar
	0...11 bar (absolute)	1 mbar
	0...21 bar (absolute)	1 mbar
	0...200 bar (absolute)	10 mbar
	0...400 bar (absolute)	50 mbar
	0...700 bar (absolute)	100 mbar
	0...1000 bar (absolute)	100 mbar
