Techical Overview

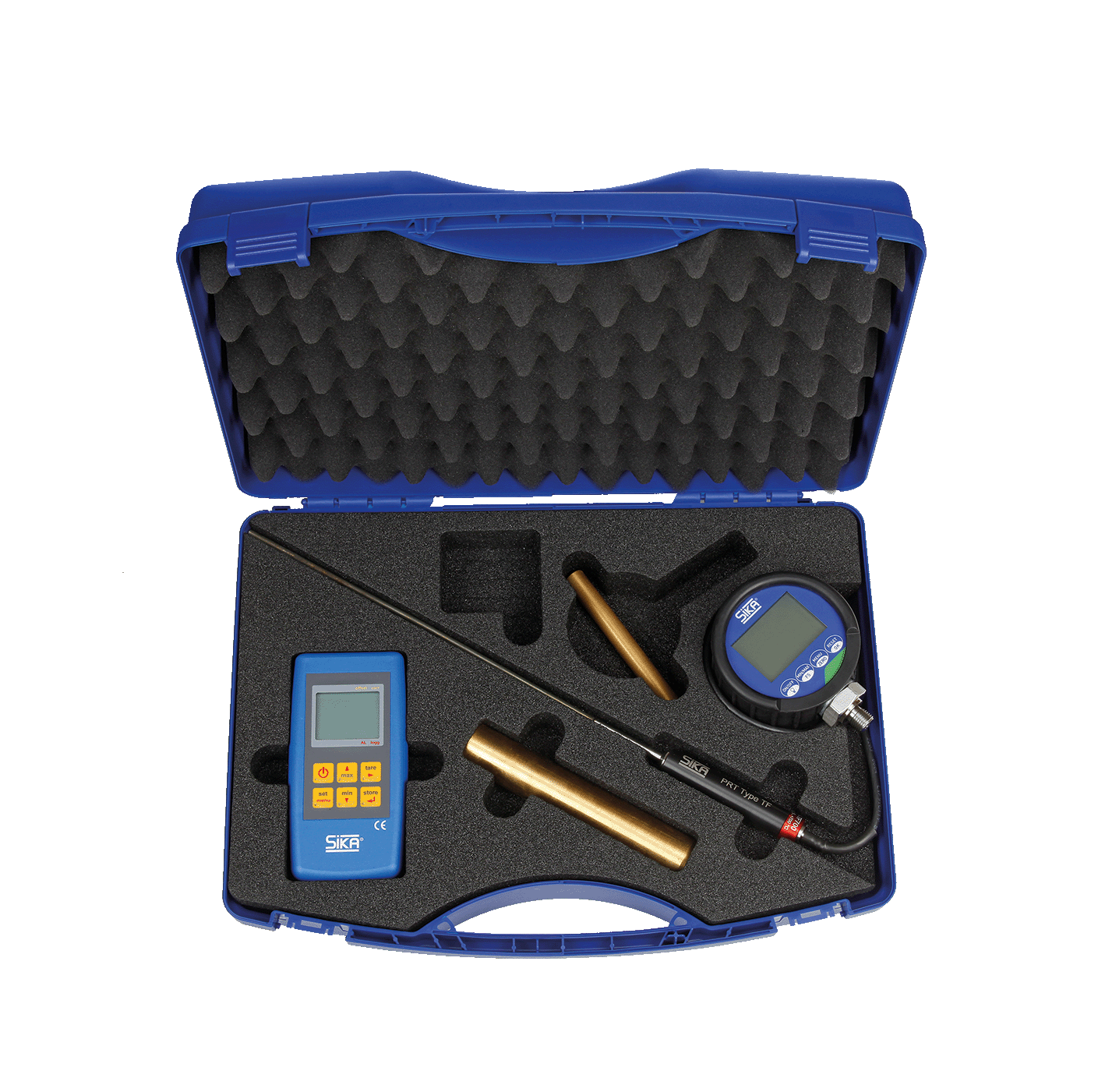

Set	Temperature Calibration	Pressure Calibration	Order Number
Set 7	0...650 °C, Accuracy: 0.03%	-1...60 bar, Accuracy: 0.1%	EME8RCS-SET-007
	Hand-held meter MH 3750	Digital pressure gauge D2 with certificate
	Sensor: TF 700
	4-point linearization with certificate
Set 8	0...650 °C, Accuracy: 0.03%	0...700 bar, Accuracy: 0.1%	EME8RCS-SET-008
	Hand-held meter MH 3750	Digital pressure gauge D2 with certificate
	Sensor: TF 700
	4-point linearization with certificate

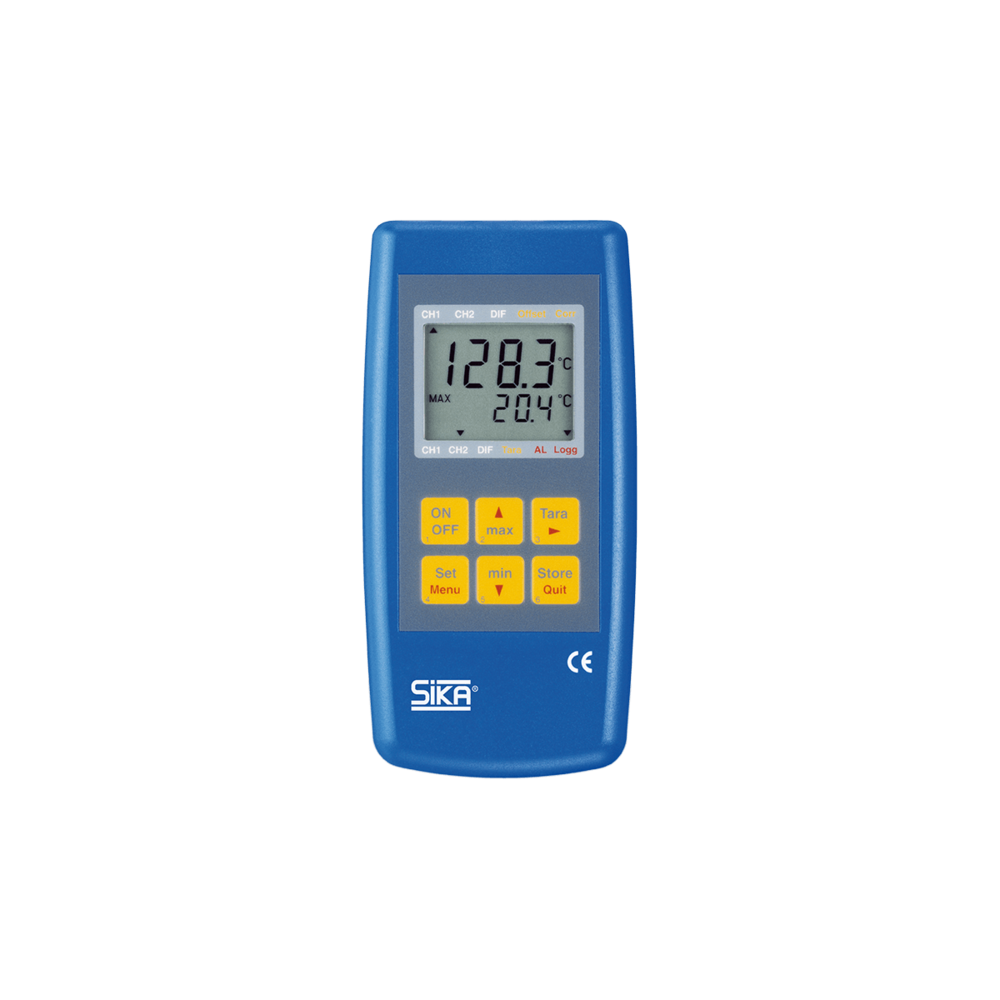

MH3750 Technical Data
Measuring Input	Pt100
Measuring Range	0...650.0 °C
Resolution	up to 0.1 °C
Features	Min/Max memory, hold, auto-off, alarm & data logger, user-defined sensor curve, real-time clock, memory for 16,384 values
Measuring Accuracy	< ±0.2 °C

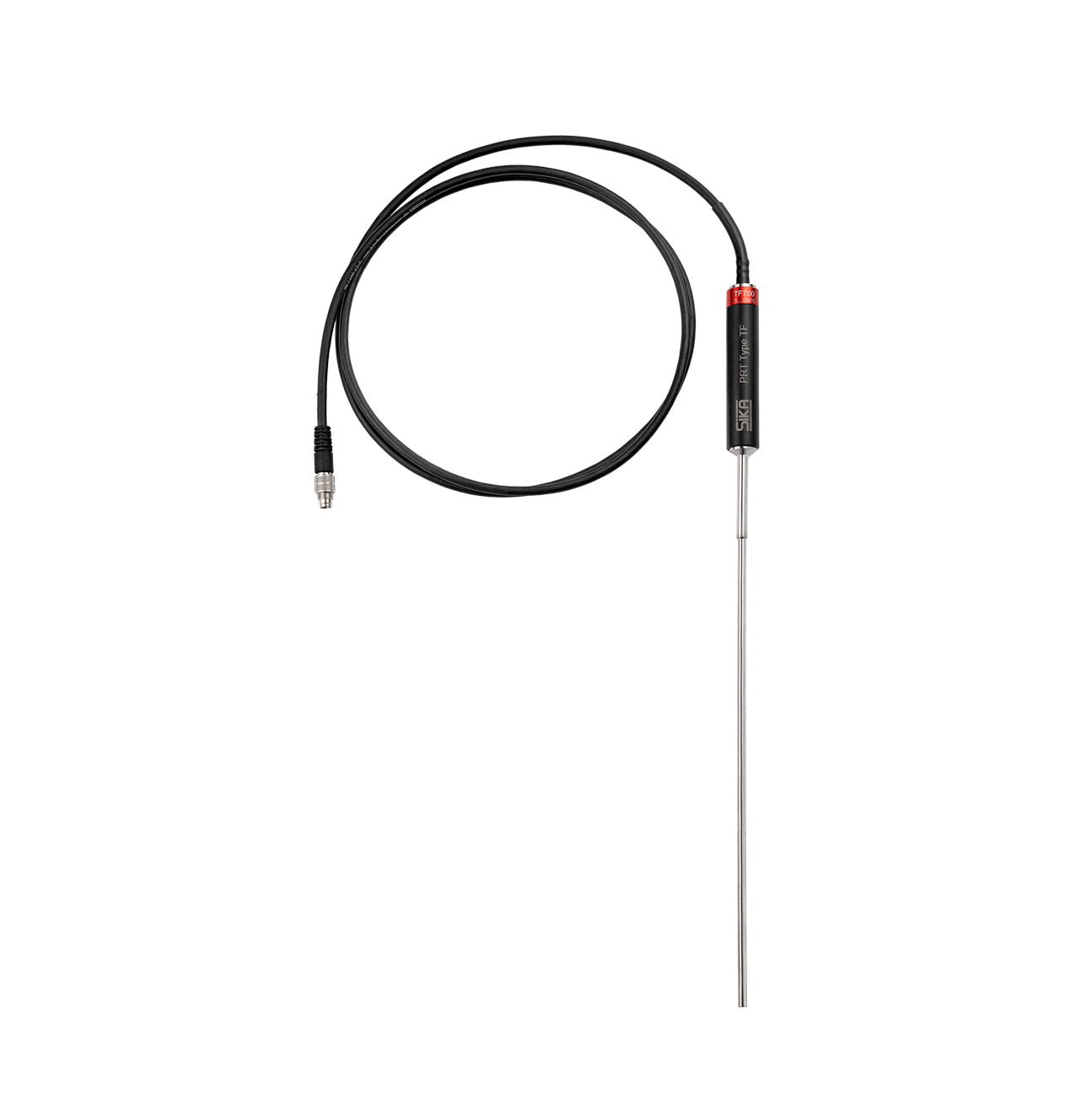

TF700 Technical Data
Measuring Range	0...650.0 °C
Sensor Material	Stainless Steel
Dimensions	Ø 4.5 mm, Length 300 mm
Cable	Silicone, 1 m with 4-pin mini DIN plug

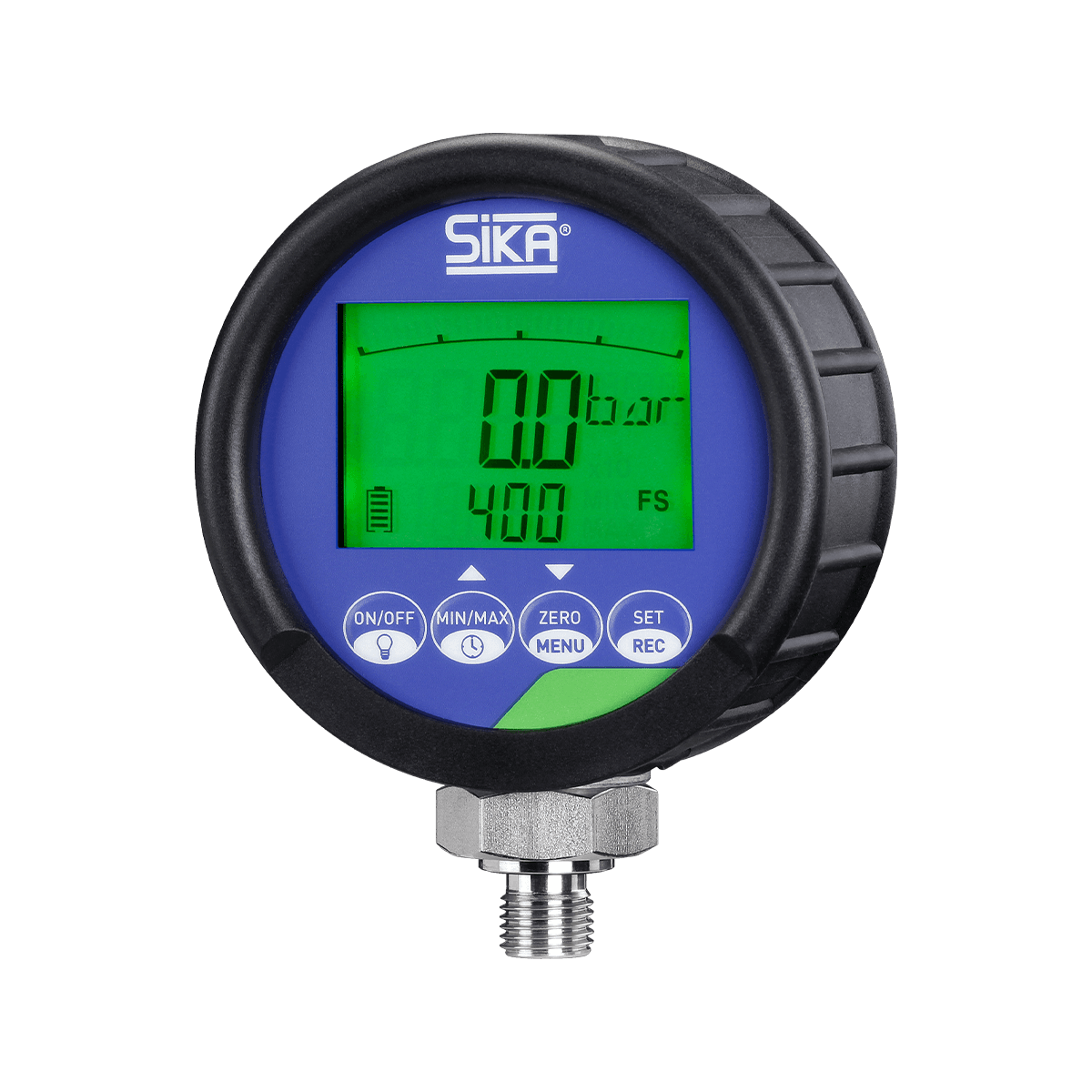

D2 Technical Data
Pressure Ranges	-1...60 bar (0.01 bar res.), 0...700 bar (0.1 bar res.)
Accuracy	< ±0.1 %
Temperature Range	0...50 °C
Protection Class	IP67
Features	Min/Max memory, hold, auto-off, µC-based with EEPROM, strain gauge cell
