Technical Data

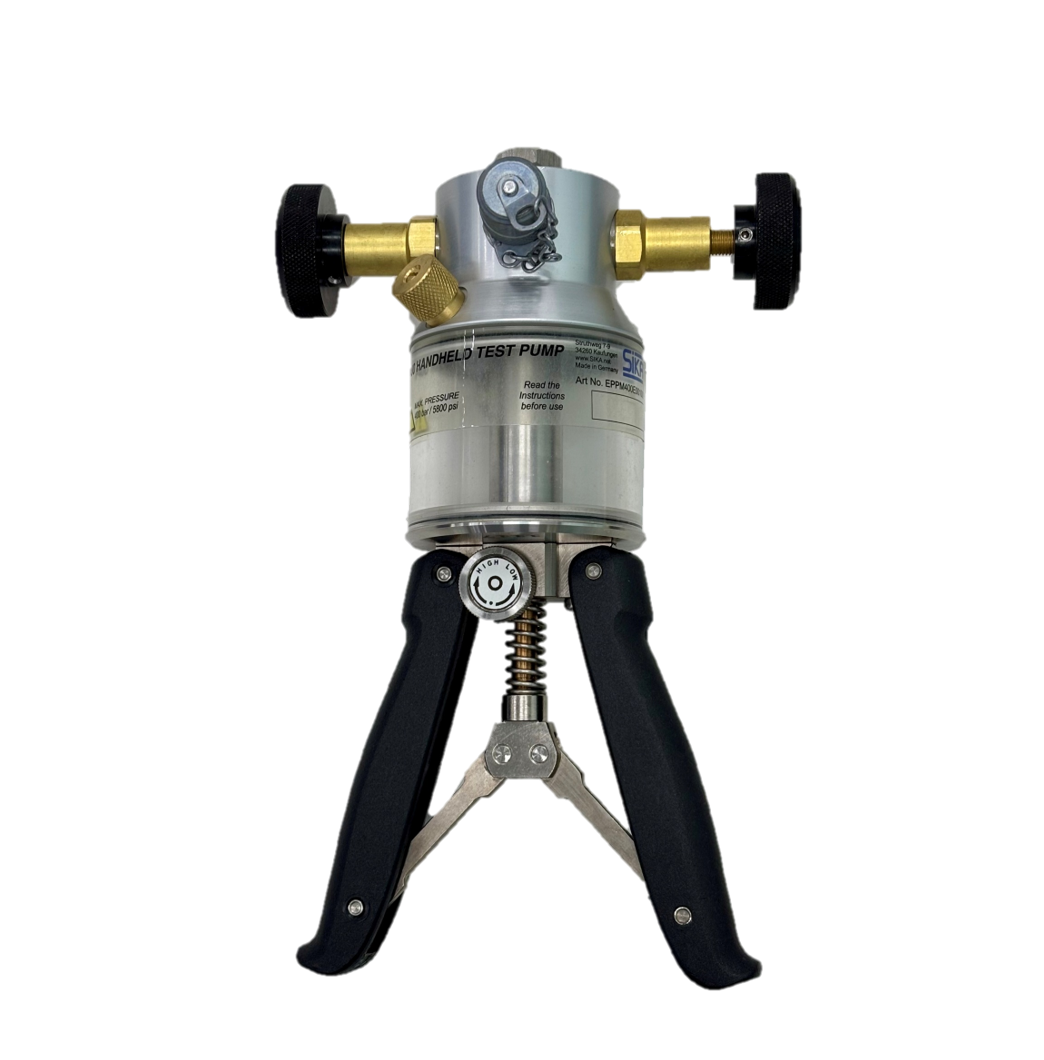

Type	P400
Pressure ranges	0…400bar
Pressure medium	Distilled water or hydraulic fluid
Connections
Reference pressure gauge	G¼
Test sample	G¼ with quick coupling and pressure hose (1m)
Basic
Dimensions	Approx. 240 x 170 x 50 mm
Weight	Approx. 1.1 kg

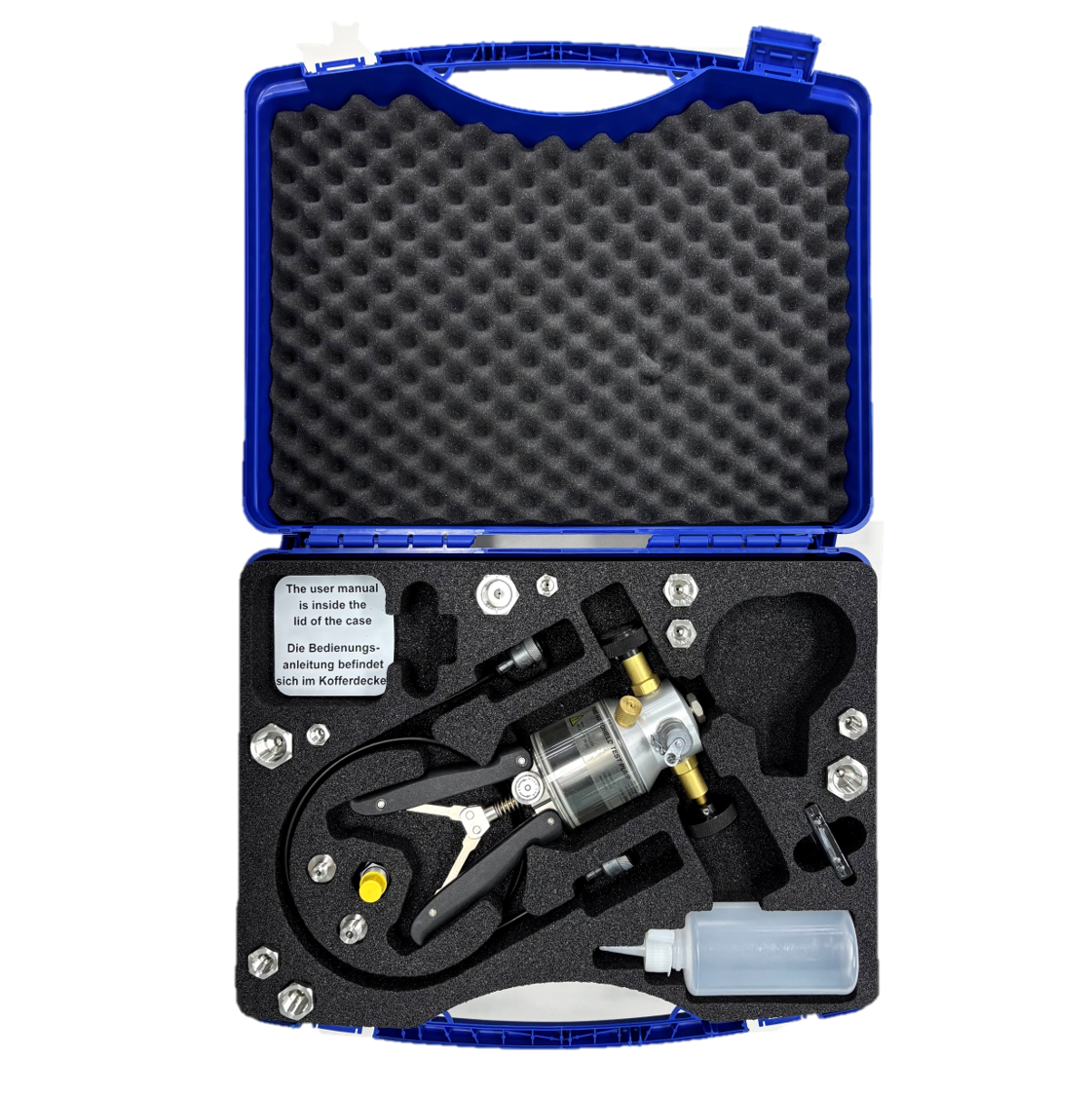

Solid
Dimensions (case)	Approx. 450 x 370 x 110 mm
Weight	Approx. 5.0kg
+Adapter kit	Chrome-plated brass, G⅛, G¼, G⅜, G½, ⅛ NPT, ¼ NPT, ½ NPT, M12 x 1.5, M20 x 1.5, G⅛, G¼
+Seal kit	Teflon® Seals and O-rings
