Technical data

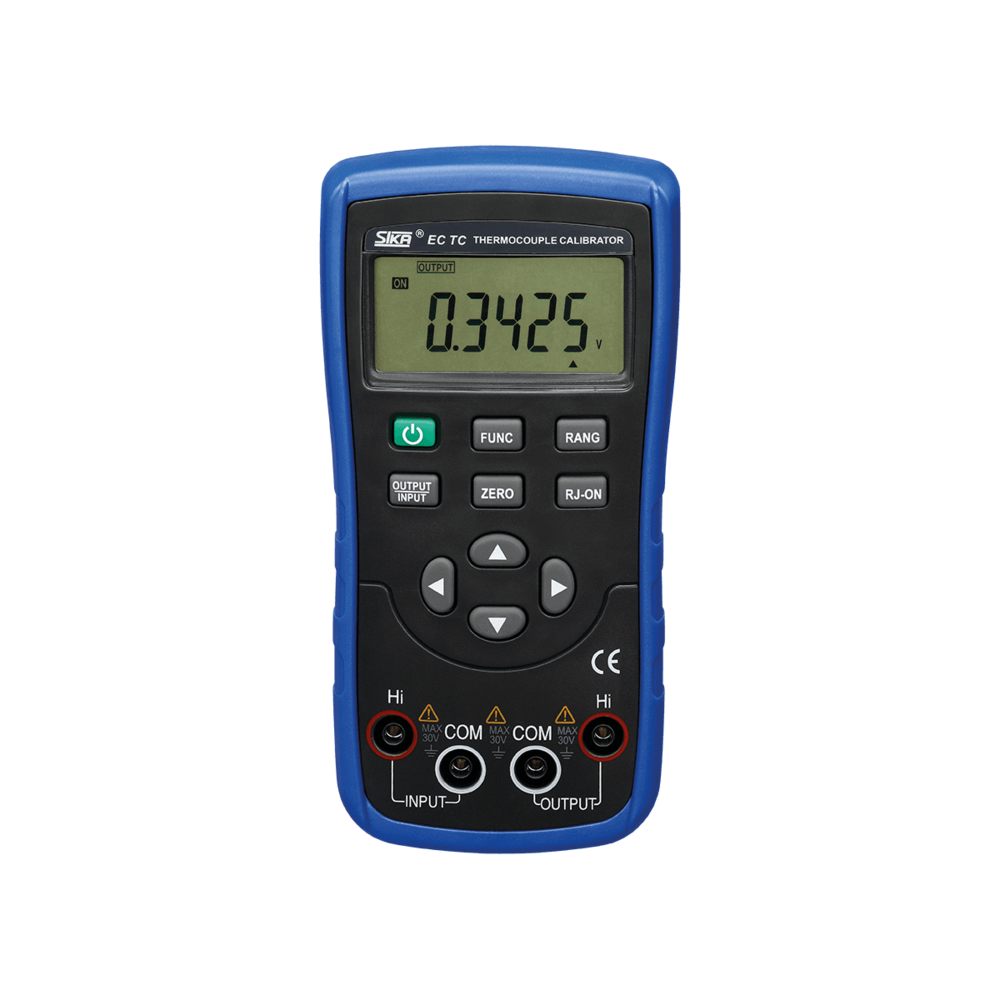

Type	EC TC.2
Thermoelemente (TC)
Generation and measurement of TC signals	J, K, T, R, S, B, N, E
mV-generator function	-10...1100 mV
mV-measurement function	-10...110 mV
Accuracy (of reading + const.)	±0.05 %
Selectable temperature unit	°C / °F
Internal comparison point	±0.5 °C
General data
Sensor connection	4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips
Power supply	1 x 9 V monobloc battery Operating time approx. 25 h with auto-power-off
PC Interface	-
Operator guidance	Keypad
Display	Multifunction display LCD, 5½ digit
Housing	ABS plastic with protective cover
Dimensions	200 x 100 x 40 mm (H x W x D)
Weight	Approx. 550 g
