Technical Data
Temperature range	Room temperature...850 °C
Dimension of the calibration insert	Ø 18 x 100 mm (calibration insert easily exchangeable)
Dry block
Accuracy	±1 °C
Temperature stability	±0.1 °C
Resolution of the temperature display	1 °C
Reference temperature sensor	internal, fixed installation
Dimensions
->Width	330mm + 70mm (Handle)
->Hight	270mm
->Depth	150mm
Weight	Approx. 14 kg
Power supply	230...240 VAC, 50 / 60 Hz
Power consumption	Approx. 2000 W
Display and control	2-line, 4-digit digital display red / green, unit °C / °F
Approvlas	CE, RoHS, REACH, EAC, UKCA
Calibration insert
Bore holes (mm)	Material
Calibration insert incl. 1 bore hole of choice	Copper-Alu
Each additional bore hole	Copper-Alu

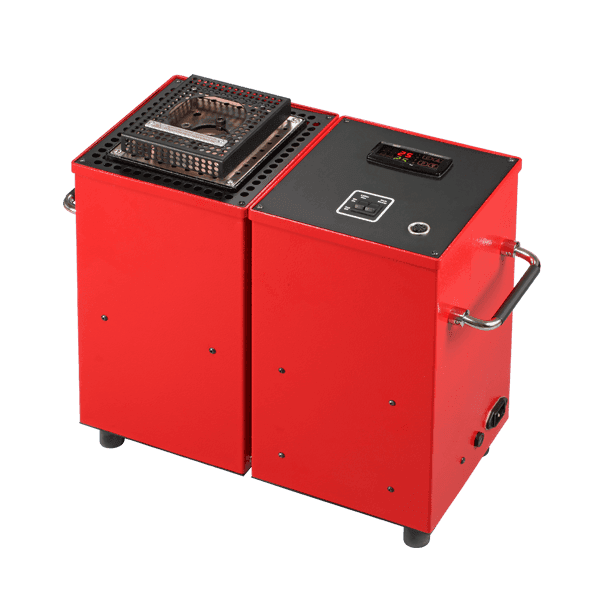

온도 교정기 TP 18850E (RT...850°C) 카탈로그 보기
