Technical Data
Temperature range	Room temperature...255 °C
Calibration volume	Ø 60 x 170 mm

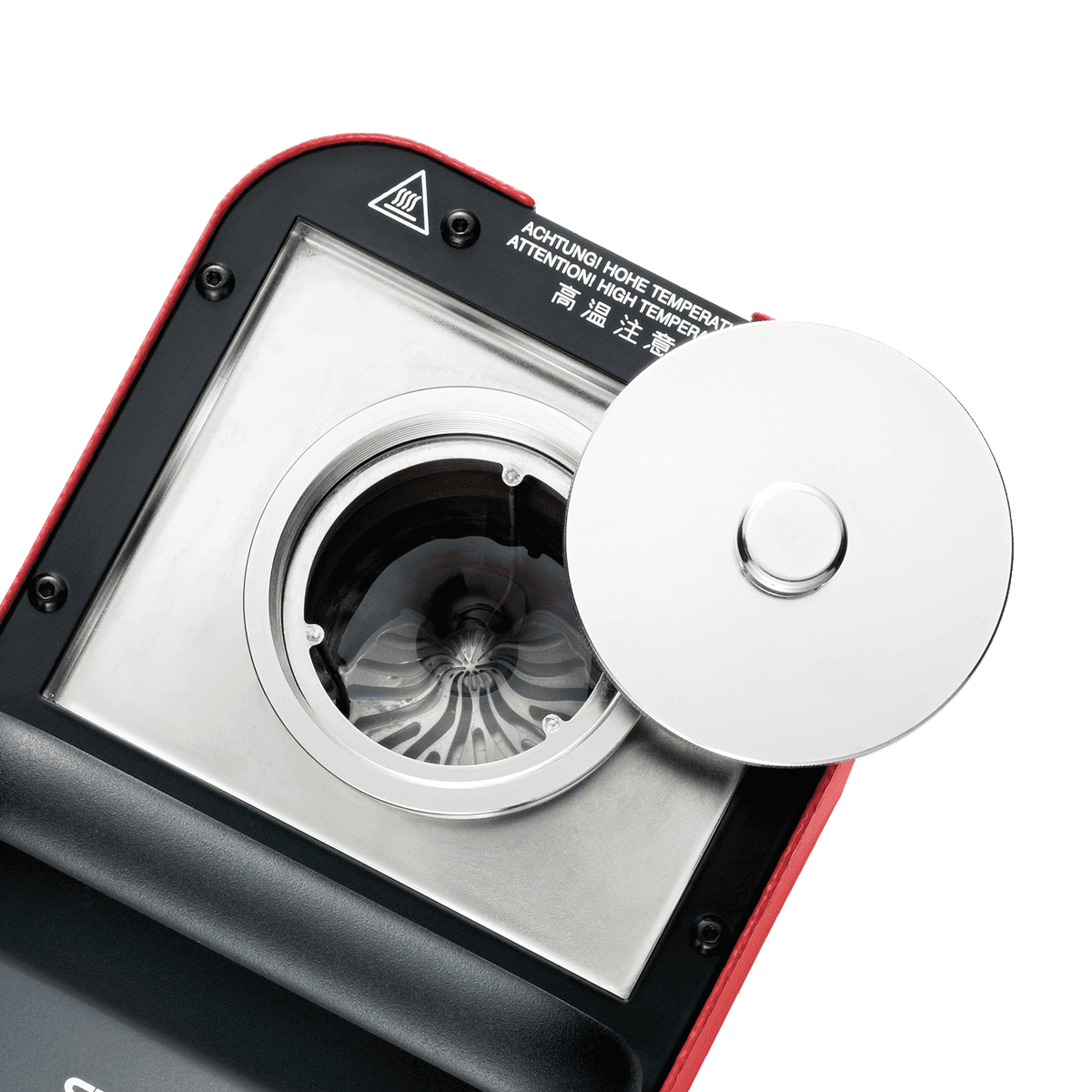

Calibration bath
Accuracy	±0.2 °C
Temperature stability	±0.05 °C
Resolution of the temperature display	0.01 °C in the range -9.99...99.99 °C, else 0.1 °C
Reference temperature sensor	internal, fixed installation
Interface	RS485 (calibrator) to USB (PC)
Connectivity	MODBUS
Dimensions
->Width	150mm
->Hight	330 + 70mm
->Depth	270mm
Weight	Approx. 7.5 kg
Power supply	110...115 V 60 Hz / 230 V 50 Hz
Power consumption	Approx. 1000 W
Display and control	2-line, 4-digit digital display red / green, unit °C / °F
Approvlas	CE, RoHS, REACH, EAC, UKCA, CT
Linearisation
Calibration function	Calibration bath (Direct filling)
Calibration bath (Direct filling)	20 cSt / 7…220°C
	50 cSt / 50…270°C
