Technical Data
Temperature range	Room temperature...450 °C
Dimension of the calibration insert	Ø 60 x 150 mm (calibration insert easily exchangeable)
Dry block Air Shield Insert	External reference temperature sensor
Display accuracy	±0.2 °C
Temperature stability	±0.010 °C
Temperature distribution
->Axial	±0.100 °C
->Radial	±0.015 °C
Influence of load	±0.010 °C
Dry block	External reference temperature sensor	Internal reference temperature sensor
Display accuracy	±0.25 °C	±0.3 °C
Temperature stability	±0.010 °C	±0.030 °C
Temperature distribution
->Axial	±0.300 °C	±0.300 °C
->Radial	±0.060 °C	±0.060 °C
Influence of load	±0.015 °C	±0.015 °C
Infrared calibration	External reference temperature sensor	Internal reference temperature sensor
Display accuracy	±0.5 °C	±0.5 °C
Temperature stability	±0.030 °C	±0.100 °C
Emission factor	0.9994
Surface calibration	External reference temperature sensor
Display accuracy	±1 °C
Temperature stability	±0.250 °C
General data
Stabilisation time (with external reference temperature sensor)
->to ±0.05°C	From 1 min
->to ±0.005°C	From 5 min
Heating time (without calibration insert)
-> 20 °C...440 °C	17 min
Cooling time (without calibration insert)
-> 450 °C...30 °C	36 min
Resolution of the temperature display	0.001 °C
Hysteresis	±0.010 °C
Temperature units	°C / °F / K (selectable)
Reference temperature sensor	Internal / external (selectable)
Interfaces	Ethernet, 3 x USB
Connectivity	OPC UA, HTTP, serial communication. Details and further possibilities on request.
Dimension
->Width	210mm
->Height	330 mm + 50 mm (Handle)
->Depth	300mm
Weight	11 kg
Power supply	90...115 V 60 Hz / 230 V 50 Hz (Voltages below 110 V can lead to longer heat-up times or reduced maximum temperature. Protective conductor (PE) required.)
Power consumption	Approx. 1000 W
Adjustable temperature range	0...450 °C
Display	Brilliant color touchscreen (7 inches), multi panel safety glass
Approvals	CE, RoHS, REACH, EAC, UKCA, TÜV

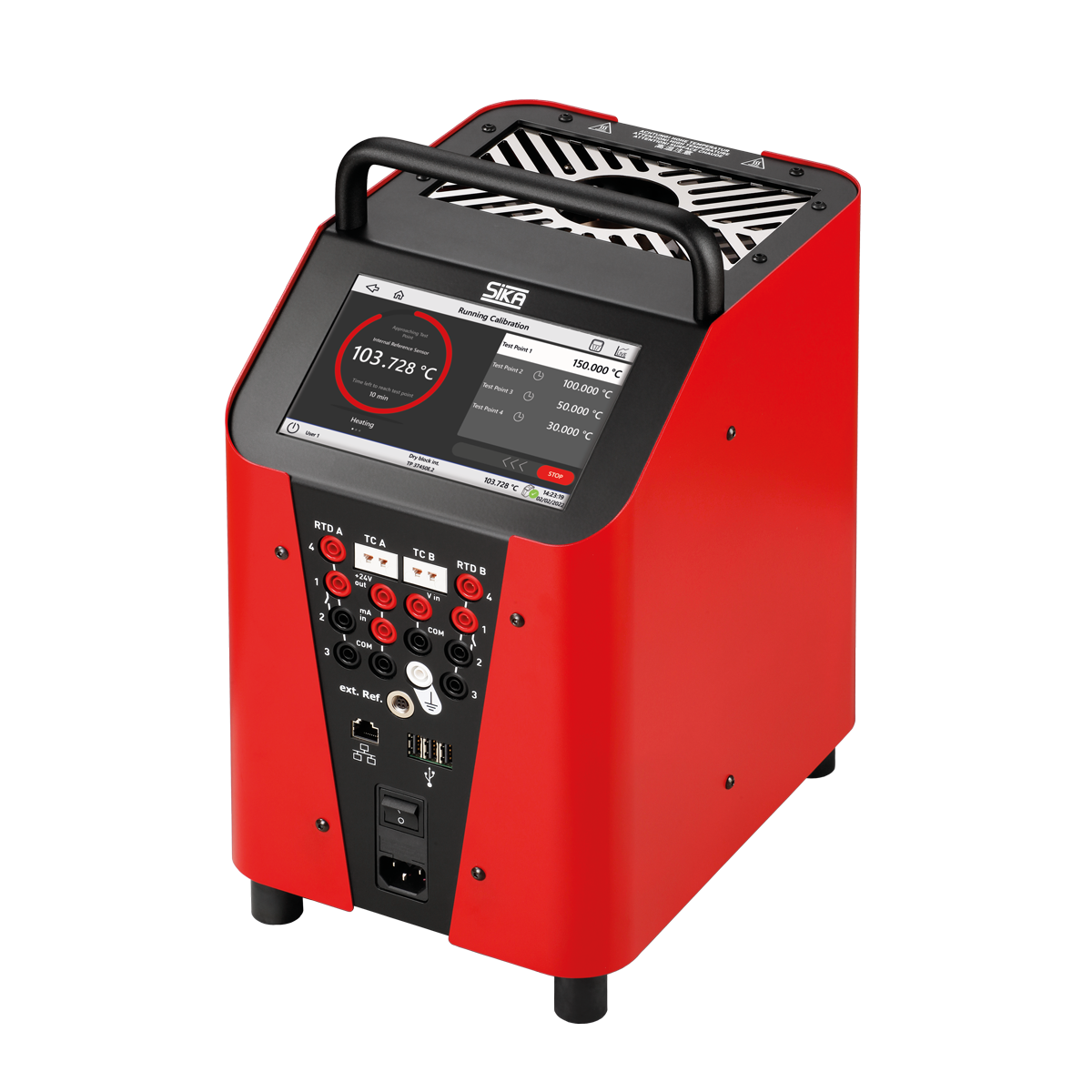

Integrated measuring instrument
Device under test inputs - Resistance thermometers
Number of channels	2
Connection	4 mm safety socket, 4 per channel
Connection type	2-, 3-, 4-wire technology
Resistance range
->Pt100	0…400 Ω
->Pt1000	0…4000 Ω
Accuracy
->Pt100	±0.03 °C
->Pt500	±0.12 °C
->Pt1000	±0.06 °C
->Ni100	±0.02 °C
->Ni150	±0.08 °C
->Ni1000	±0.04 °C
Device under test inputs - Thermocouple
Number of channels	2
Connection	2x thermocouple socket (mini)
Connection type	-10…100 mV
Accuracy cold junction	±0.3 °C
Accuracy
->Type K	±0.08 °C
->Type J	±0.07 °C
->Type N	±0.13 °C
->Type E	±0.06 °C
->Type T	±0.09 °C
->Type R	±0.78 °C
->Type S	±0.73 °C
->Type B	±0.5 °C
Standard signal input (Current)
Number of channels	1
Connection	4 mm safety socket
Measuring range	0…24 mA
Accuracy	0.01 % of range
Standard signal input (Voltage)
Number of channels	1
Connection	4 mm safety socket
Measuring range	0…12 VDC
Accuracy	0.01 % of range
Switch test
Number of channels	2
Transmitter supply
Output current	Max. 24 mA
Output voltage	24 VDC
