Technical Data

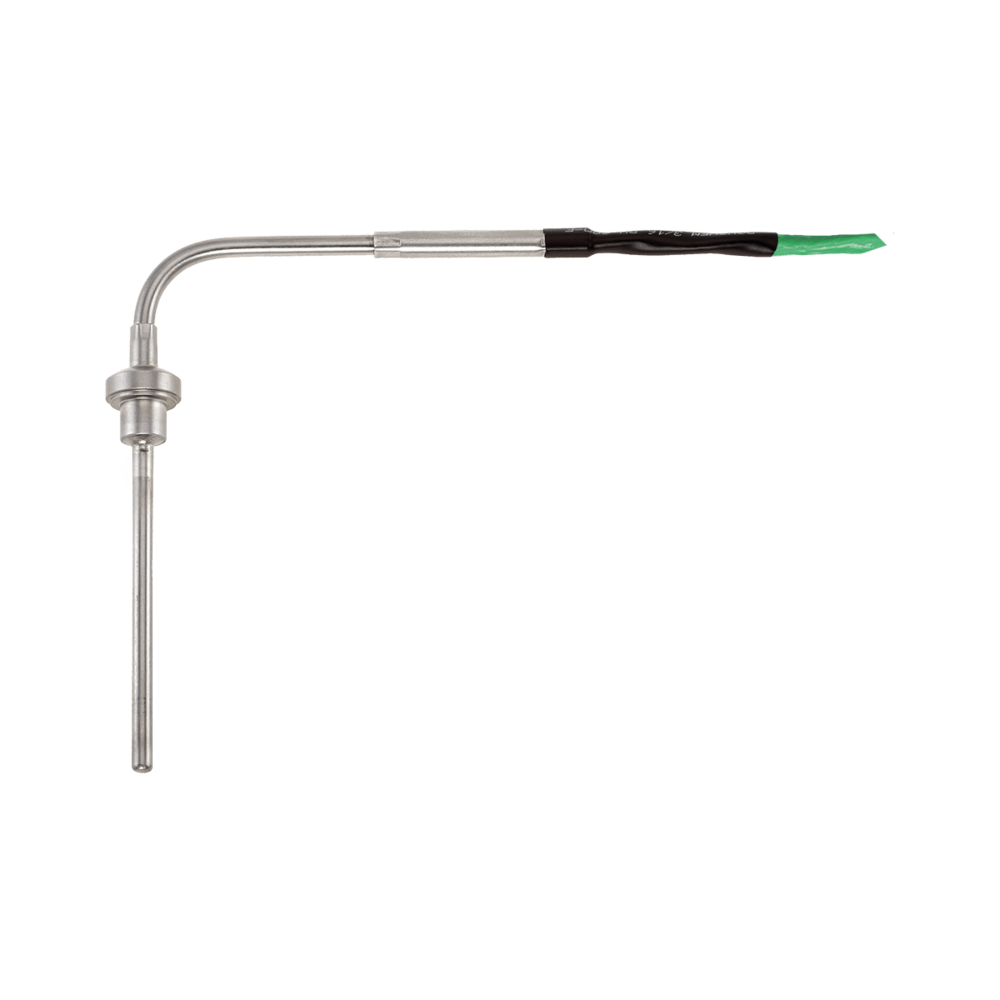

Type	Temperature sensor with connection cable
Measuring range	0…600 °C
Measuring medium	Exhaust gases marine diesel engines
Immersion tube length	45…150 mm
Immersion tube diameter	4.5 mm
Process connection	Nipple
Nominal pressure	PN 25
Medium temperature	0...600 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Electrical data
Measuring element	1 x NiCr-Ni (Type K)
	2 x NiCr-Ni (Type K)
Measuring insert	Interchangeable
Accuracy	Class 1 / ±1.5 °C or 0.004 x T
Electrical connection	FEP cable, wire braided
