Technical Data

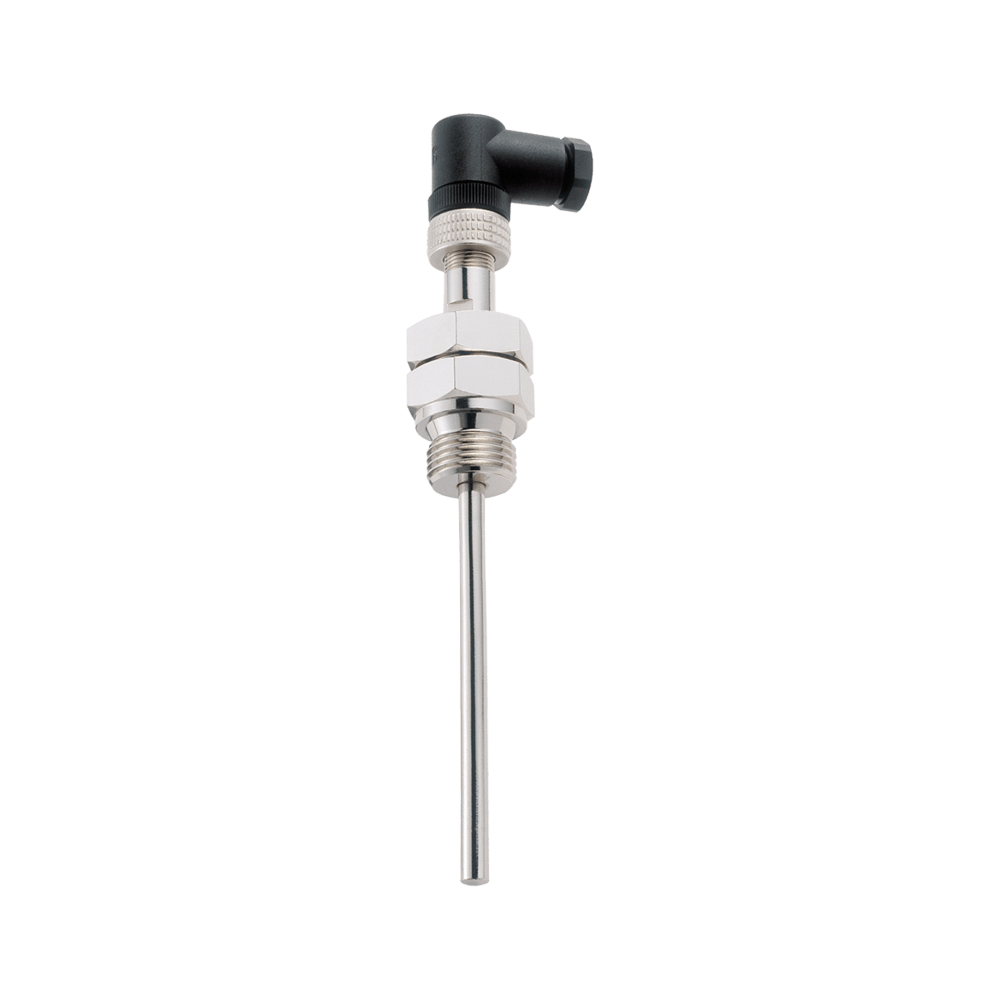

Type	Temperature sensor with spring-loaded immersion tube
Measuring range	-30…200 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	55...175 mm (10 mm spring travel)
Immersion tube diameter	6 mm
Process connection	G½ or M18 x 1.5
Nominal pressure	PN 2.5
Medium temperature	-30...200 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP65
Electrical data
Measuring element	1 x Pt100 / 2-wire
	2 x Pt100 / 2-wire
	1 x Pt100 / 3-wire
	1 x Pt100 / 4-wire
Measuring insert	Not interchangeable
Accuracy	Class A / ±(0.15 K + 0.002 x T)
	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	Angled plug M12 x 1 with knurl, 4-pole
	Terminal head J
