Technical Data

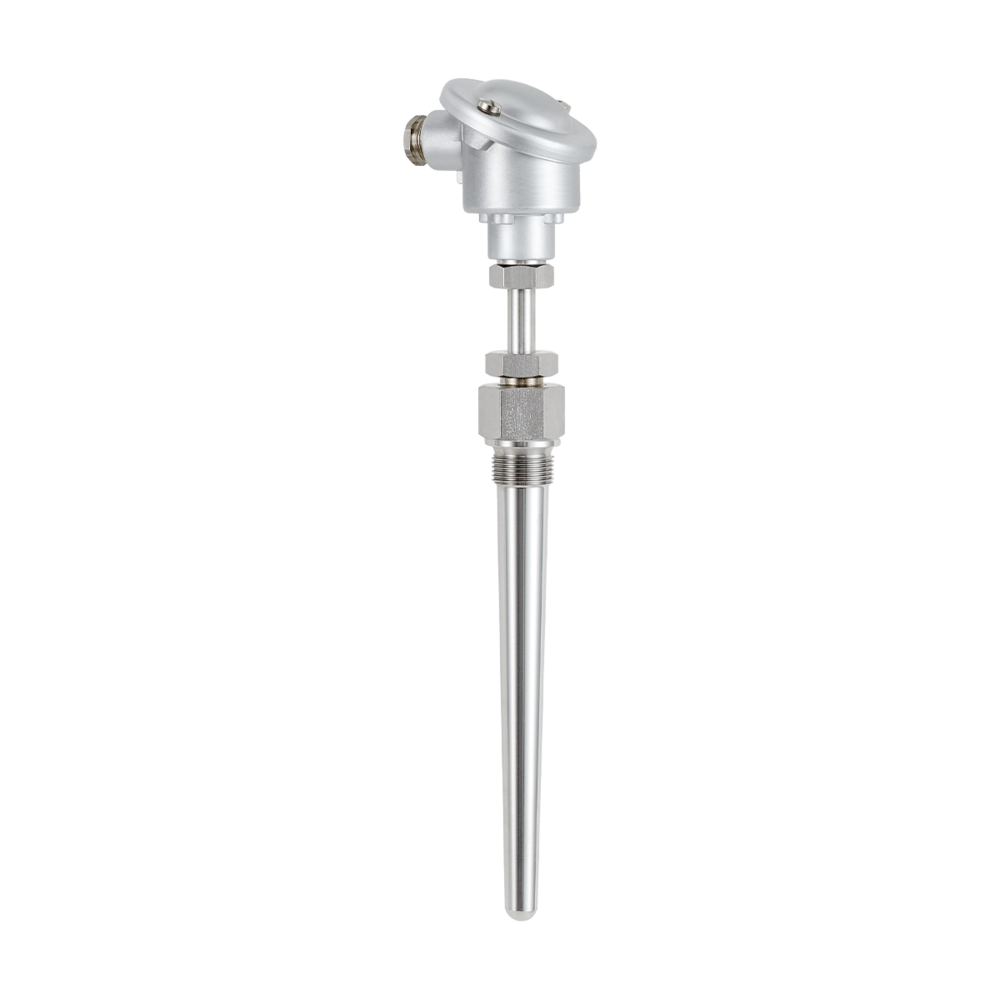

Type	Temperature sensor with protection tube type 2
Measuring range	0…600 °C
Measuring medium	Exhaust gases marine diesel engines
Protection tube length	100...300 mm
Protection tube diameter	14, 17 or 20 mm conical
Process connection	G½, G¾, M27 x 2, M33 x 2
Nominal pressure	PN 25
Medium temperature	0...600 °C
Ambient temperature	-50...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Approvals	DNV
Electrical data
Measuring element	1 x Pt100 / 3-wire / Class B
	1 x Pt1000 / 2-wire / Class B
	1 x NiCr-Ni (Type K)
	2 x NiCr-Ni (Type K)
Measuring insert	Interchangeable
Accuracy	Class B / ±(0.30 K + 0.005 x T)
	Class 1 / ±1.5 °C or 0.004 x T
Electrical connection	Head type B with ceramic socket
	Head type B with transmitter
Analogue output
Current signal	4…20 mA
Supply voltage	8...35 VDC
Scaling	Programmable
Signal error	NAMUR NE43
Max. burden	≤ (Vsupply - 8) / 0.023 [Ω]
Power consumption	25 mW…0.8 W
