Technical Data

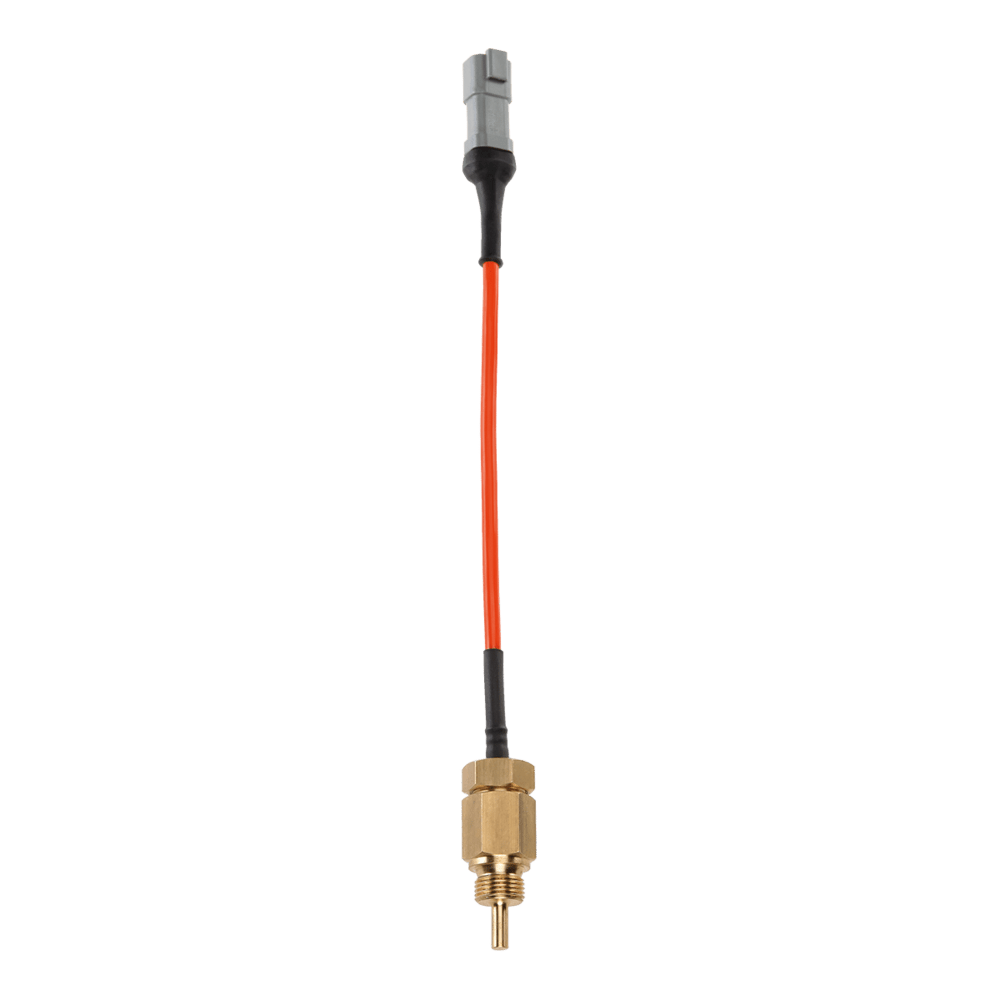

Type	Temperature sensor with integrated transmitter and plug connector
Measuring range	-50…150 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	30...100 mm
Immersion tube diameter	7 mm
Process connection	G½
Nominal pressure	PN 25
Medium temperature	-50...150 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP65
Electrical data
Measuring element	1 x Pt100 / 2-wire
Measuring insert	Not Interchangeable
Accuracy	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	FEP cable, wire braided, with mounted DEUTSCH plug
	KENPUR 500, orange, with mounted DEUTSCH plug
Supply voltage
->  4...20 mA	10...35 VDC
->  0...10 V	15...30 VDC
Analogue output
Current signal	4…20 mA or 0...10 V
Scaling	Programmable
