Technical Data

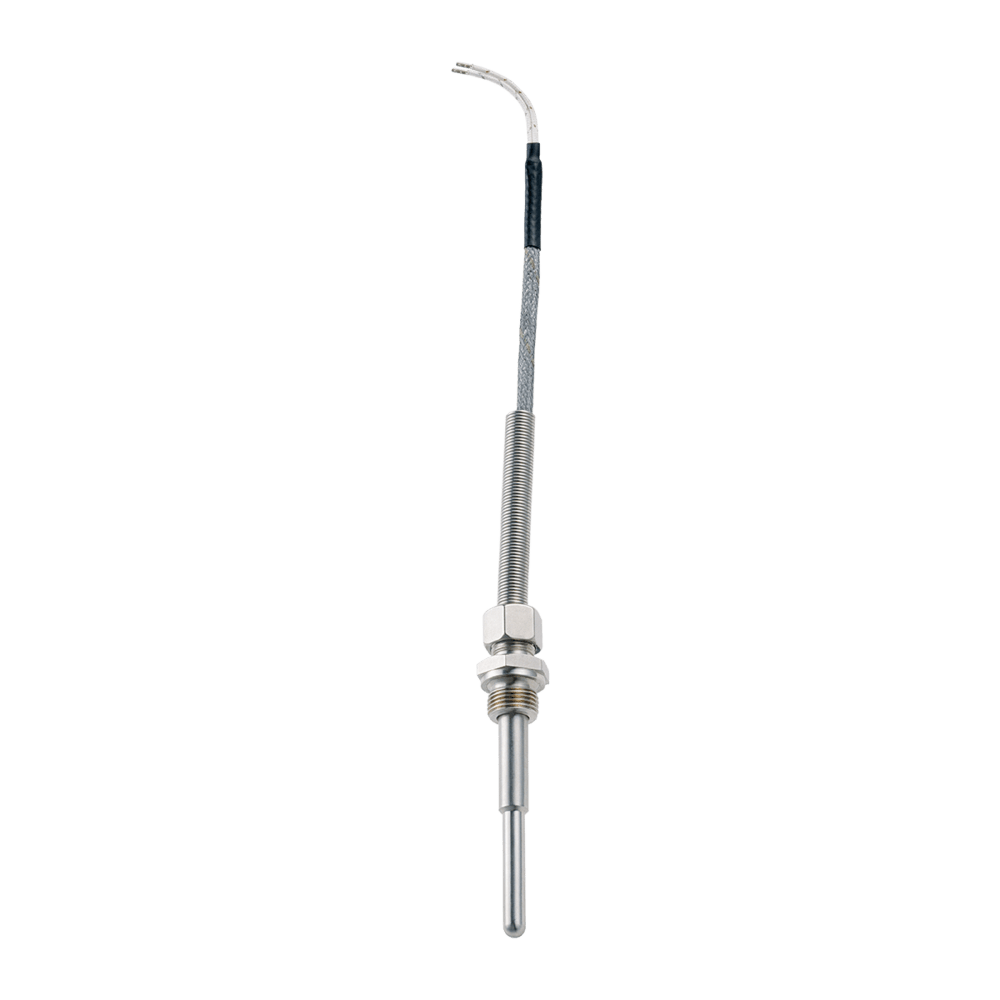

Type	Temperature sensor with connection cable
Measuring range	TWECK: 0…800 °C
	TVACP / TVACK: 0…600 °C
Measuring medium	Exhaust gases marine diesel engines
Immersion tube length	100...250 mm
Immersion tube diameter	8 or 12 mm
Process connection	Without, G¼, G½, M27 x 2
Nominal pressure	PN 25
Medium temperature	TWECK: 0…800 °C
	TVACP / TVACK: 0…600 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Approvals	DNV (only TWE)
Electrical data
Measuring element	1 x NiCr-Ni (Type K)
	1 x Pt100 / 3-wire (only type TWE)
Measuring insert	Interchangeable
Accuracy	Class 1 / ±1.5 °C or 0.004 x T
	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	FEP cable, wire braided
	Fibreglass, wire braided
