Technical Data

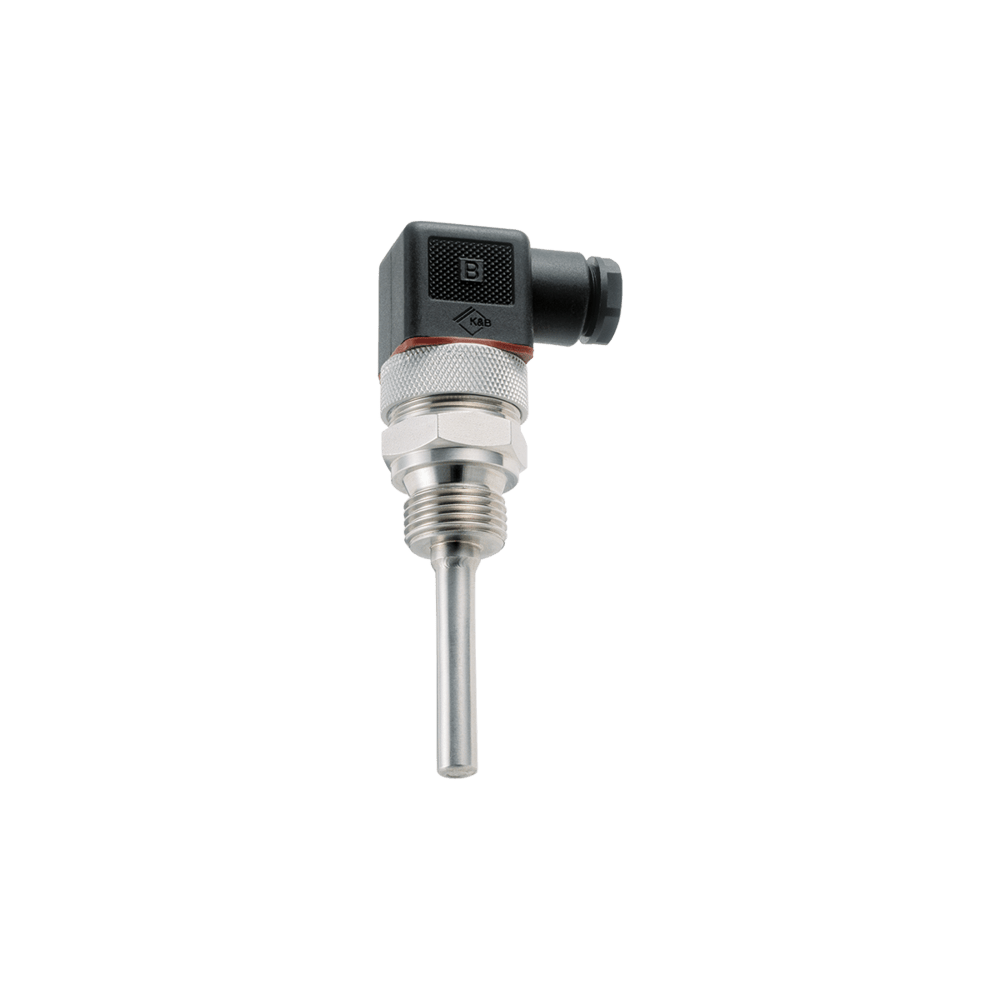

Type	Temperature sensor with angled plug
Measuring range	-50…200 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	50...200 mm
Immersion tube diameter	6 or 8 mm
Process connection	G½, G¾, M18 x 1.5 or M20 x 1.5
Nominal pressure	PN 25
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP65
Approvals	DNV
Electrical data
Measuring element	1 x Pt100 / 2-wire
	1 x Pt100 / 3-wire
Measuring insert	Interchangeable
Accuracy	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	Angled plug, DIN EN 175 301-803, Type A
