Technical Data

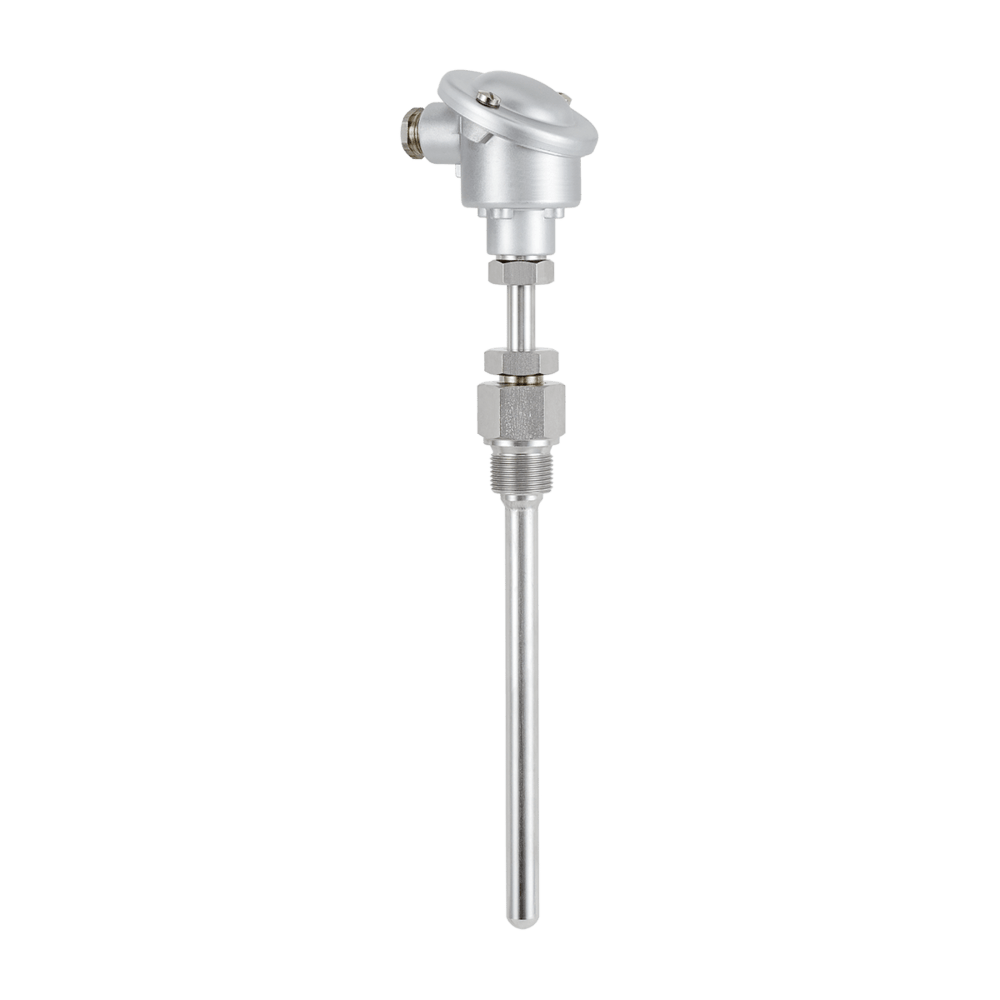

Type	Temperature sensor with connection head type B
Measuring range	-40…200 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	80...250 mm
Immersion tube diameter	12 or 14 mm
Process connection	G¼, G½, M27 x 2, M33 x 2
Nominal pressure	PN 25
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Electrical data
Measuring element	2 x Pt100 / 2-wire
	1 x Pt100 / 3-wire
	1 x Pt100 / 4-wire
Measuring insert	Interchangeable
Accuracy	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	Head type B with ceramic socket
	Head type B with transmitter
Analogue output
Current signal	4…20 mA
Supply voltage	8...35 VDC
Scaling	Programmable
Signal error	NAMUR NE43
Max. burden	≤ (Vsupply - 8) / 0.023 [Ω]
Power consumption	25 mW…0.8 W
