Technical Data

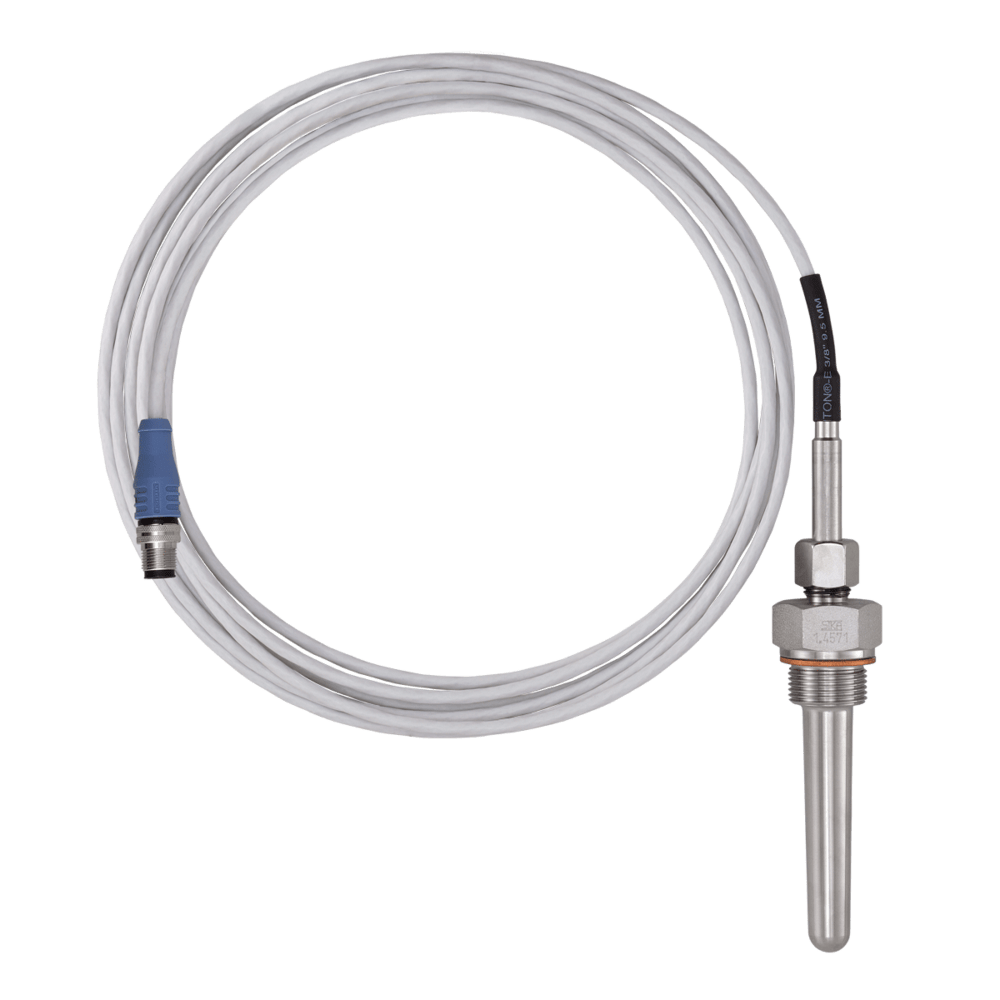

Type	Temperature sensor with connection cable for SolarTemp 851
Measuring range	0…600 °C
Measuring medium	Exhaust gases marine diesel engines
Immersion tube length	100...200 mm
Protection tube diameter	14, 17 or 20 mm conical
Process connection	G½, G¾, or M33 x 2
Nominal pressure	PN 25
Medium temperature	0...600 °C
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Approvals	DNV
Electrical data
Measuring element	1 x Pt1000 / 2-wire / Class B
	2 x Pt1000 / 2-wire / Class B
Measuring insert	Interchangeable
Accuracy	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	FEP cable, wire braided
