Technical Data

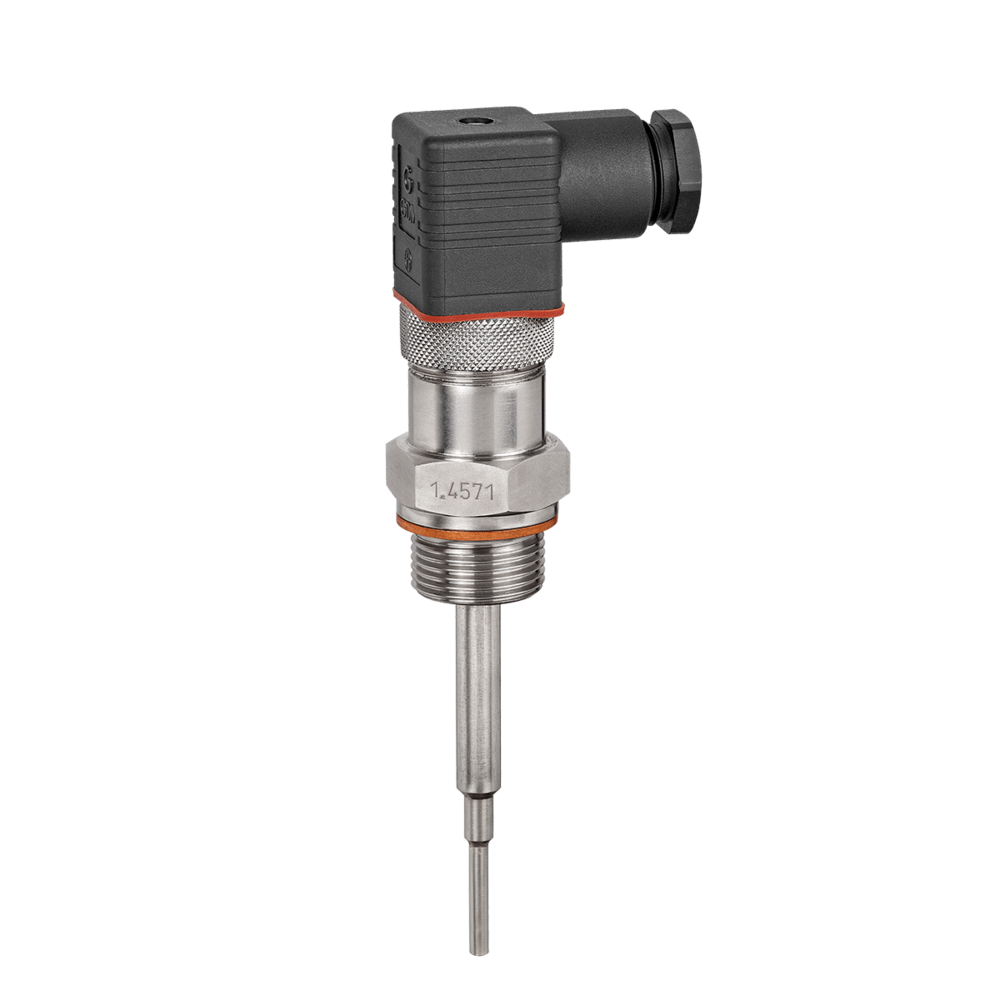

Type	Temperature sensor with integrated transmitter
Measuring range	-20…200 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	50...250 mm (≥ 200 mm conical)
Immersion tube diameter	4, 6 or 8 mm
Process connection	G½, G¼ or G¾
Nominal pressure	PN 25
Medium temperature	-20...200 °C
Ambient temperature	-20...85 °C
Storage temperature	-20...70 °C
Degree of protection according to EN 60529	IP65
Approvals	EU RO Mutual Recognition Type Approval Certificate (Marine version only). Covers: ABS, BV, CCS, CRS, DNV, IRS, KR, LR, ClassNK, PRS, RINA, RS
Electrical data
Measuring element	1 x Pt100 / Class B
Measuring insert	Interchangeable
Accuracy	±1 % of range
Electrical connection	Angled plug, DIN EN 175 301-803, Form A
Analogue output
Current signal	4…20 mA
Supply voltage	10...35 VDC
Scaling	Programmable
Signal error	NAMUR NE43
