Technical Data

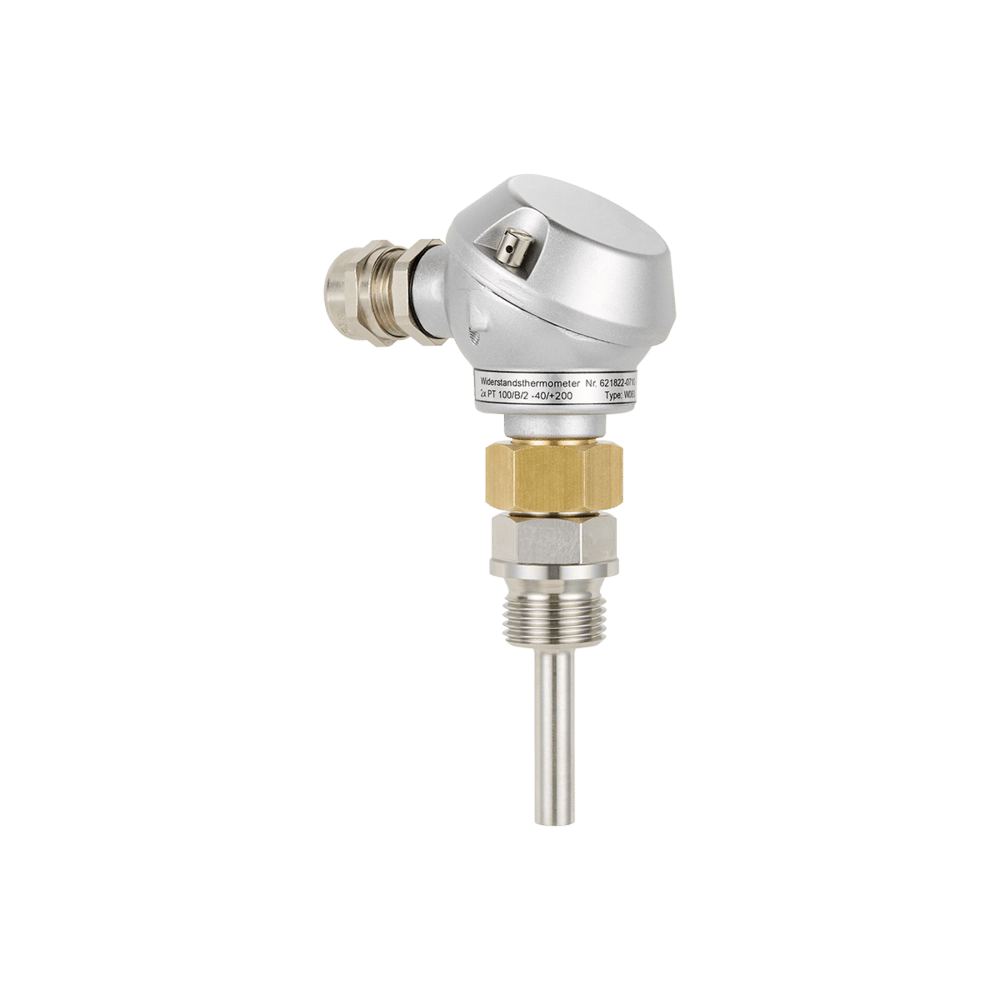

Type	Temperature sensor with connection head type J
Measuring range	-40…200 °C
Measuring medium	Water and aqueous liquids, non-aggressive gases
Immersion tube length	50...200 mm
Immersion tube diameter	8 mm or 12 mm
Process connection	G½, G¾, G¼
Nominal pressure	PN 25
Ambient temperature	-40...85 °C
Storage temperature	-25...70 °C
Degree of protection according to EN 60529	IP54
Approvals	DNV, ABS, LR, BV, RINA
Electrical data
Measuring element	1 x Pt100 / 3-wire
	2 x Pt100 / 2-wire
	1 x Pt1000 / 2-wire
	2 x Pt1000 / 2-wire
Measuring insert	Interchangeable
Accuracy	Class A / ±(0.15 K + 0.002 x T)
	Class B / ±(0.30 K + 0.005 x T)
Electrical connection	Head type J with ceramic socket
	Head type J with transmitter
Analogue output
Current signal	4…20 mA
Supply voltage	10...35 VDC
Scaling	Programmable
Signal error	NAMUR NE43
